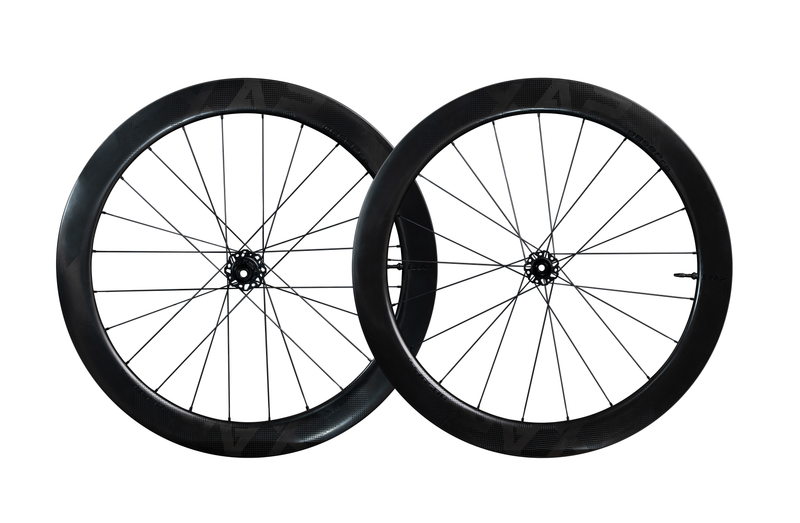

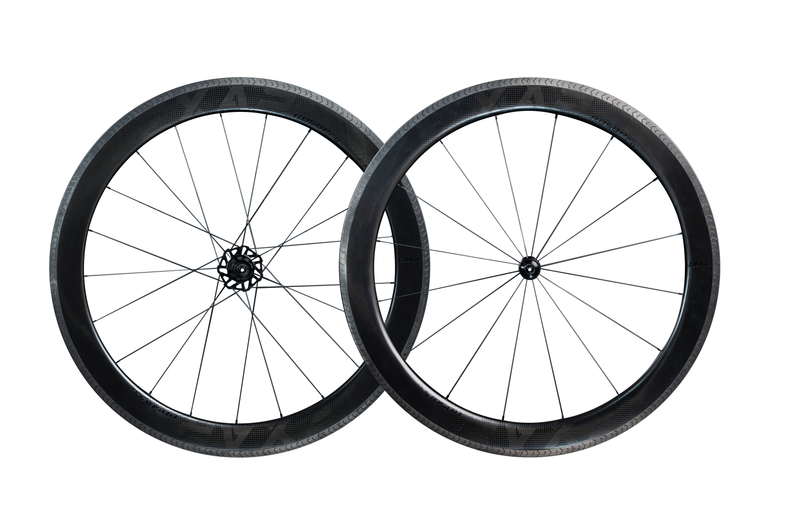

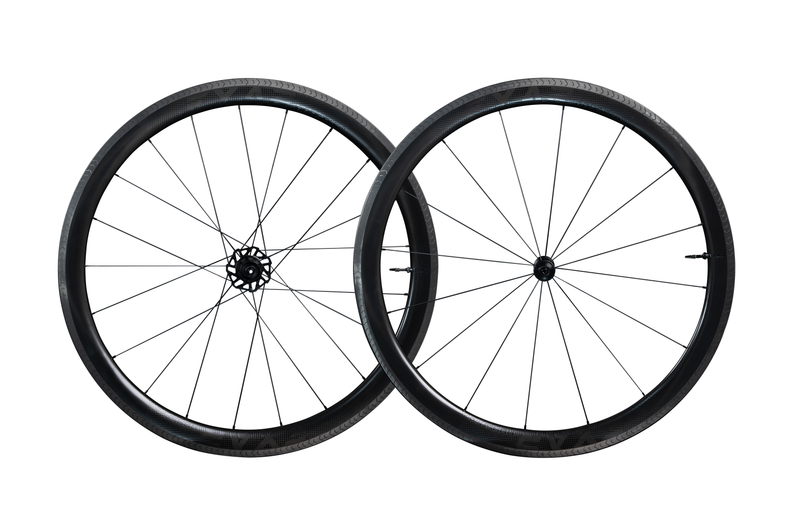

Magene Exar PRO Road Bike Carbon Wheels

  • Sale
  • Dhs. 3,300.00
  • Regular price Dhs. 3,500.00
Tax included. Shipping calculated at checkout.


EXAR PRO wheels are a new generation of carbon fiber road wheels produced by Magene.

EXAR carbon wheelset Pro 2022 has been upgraded in many aspects. It has a lighter body, wider rim, and unique braking rim design. To get the best stiffness, it adopts an elaborate hub structure, rim design, and lacing pattern.

Specifications of EXAR Carbon Fiber Wheels Pro, Tubeless ready



Rim Brake

Disc Brake

Model

RB45 Pro

RB58 Pro

DB45 Pro

DB58 Pro

Frame Height

45mm

58mm

45mm

58mm

Weight

1330g

1440g

1390g

1490g

The weight of the wheelset does not include the weight of a quick-release skewer and a tire cushion.
The weight has an error of ±3%. The actual product may vary.

External Rim Width

Front-wheel: 27mm
Rear-wheel: 26mm

27mm

Internal Rim Width

Front-wheel: 20mm
Rear-wheel: 19.5mm

20mm

Rim Material

T800

T800

Brake

Rim brake with dewatering line design

Center lock disc brake

Spoke Type

pillar wing20

Front Wheel Spoke Tension

100kgf±10%

Rear Wheel Spoke Tension

Drive side

120kgf±10%
Non-drive side

110kgf±10%

Drive side

120kgf±10%
Non-drive side

100kgf±10%

120kgf±10%

Front Wheel Spoke Lacing Pattern

Straight-pull, 16H

21H, 2:1, Brake side×2, Non-brake side (Straight Pull)

Rear Wheel Spoke Lacing Pattern

21H, 2:1, Drive side×2, Non-drive side (Straight Pull)

24H, 2:1, Drive side×2, Brake side×2

Rim Type

Front-wheel: Non-asymmetric
Rear wheel: Asymmetri

Non-asymmetric

Non-asymmetric

Frame Spacing

100/130mm quick release

100/142mm thru-axle
(100/135mm quick release, available separately)

Freehub



Standard SHIMANO 11-speed (CP cassette body, available separately for XDR cassette body).

Compatible Cassette

SHIMANO 8-12 speed, SRAM 8-12 speed (Available separately for XDR cassette body for 12-speed).
Campagnolo 8-12 speed (Available separately for CP cassette body in all models).

Compatible Frame

130mm quick release rim brake, 142mm thru-axle disc brake, 135mm quick release disc brake (Available separately for conversion kits).

Package Standard

Carbon fiber front wheel*1, carbon fiber rear wheel*1, tubeless tape*2 (factory-installed), instruction manual*1, special carbon fiber  composite brake block*4, quick release*2, vacuum valve stem*2

Carbon fiber front wheel*1, carbon fiber rear wheel*1, tubeless tape*2 (factory-installed), instruction manual*1, vacuum valve stem*2

 Warranty:2Years

LIGHTER, ALWAYS WITH YOU

EXAR Pro series rims are made of HI-MOD T800 carbon fiber with a special rim structure which offers an optimized blend of weight, strength and durability. EXAR wheelsets are 70-160g lighter than most other products of the same rim deep.

INTEGRAL DESIGN, NO SUB-ASSEMBLIES

Instead of being a combination of components and sub-assemblies, EXAR carbon fiber wheelsets are quality and high-performing products featuring an integral design of appearance, weight, and performance.

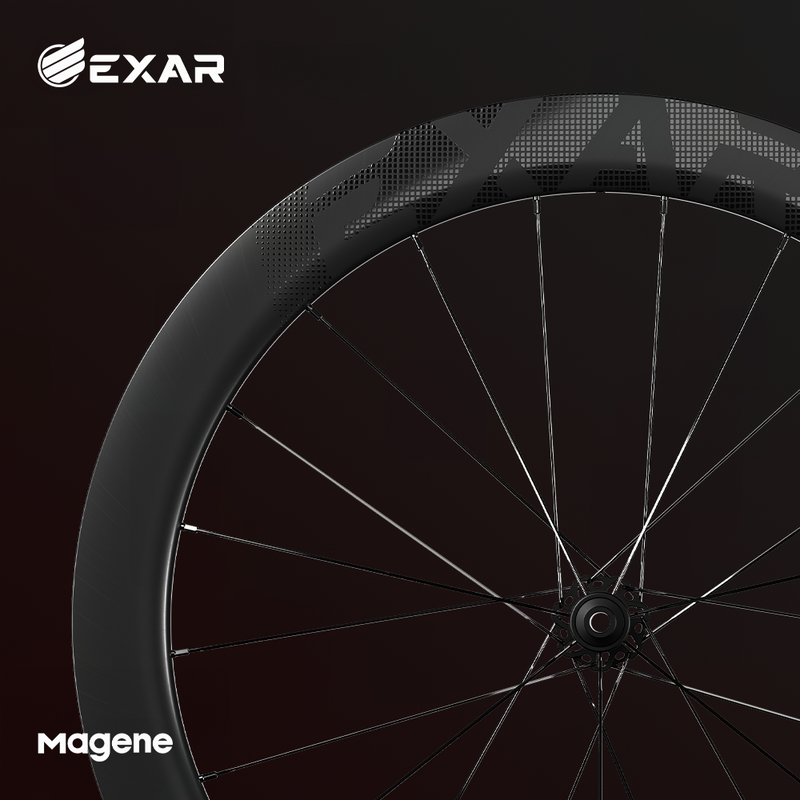

WIDER FOR BETTER AERODYNAMICS

EXAR 2022 wheelset series have an external width of 27mm and an internal width of 20mm, which are wider than most of the existing wheelset products.
The rear wheel of the Pro series with a rim brake is designed with an external width of 26mm and an internal width of 19.5mm for better compatibility with the caliper brake.

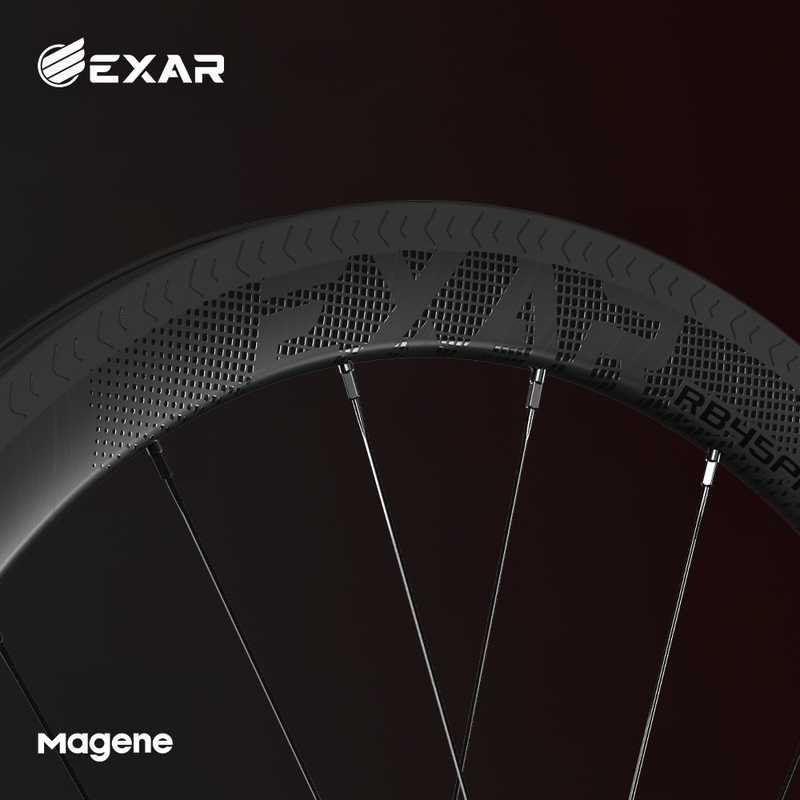

BRAKING RIM DEWATERING LINE DESIGN

The unique grooved dewatering line of the Pro series rim brake wheelsets quickly drains water and improves braking performance.
The braking rim is made of resin that be resistant to high temperature up to 240, eliminating the concern of rim blowing up or melting.

UNIQUE RIM DESIGN

To improve the wheelset stability, stiffness and crosswind resistance of different frame heights, targeted wheel rim designs were made.
The cross-sections of EXAR 2022 wheelsets are redesigned for greater stability and rigidity.

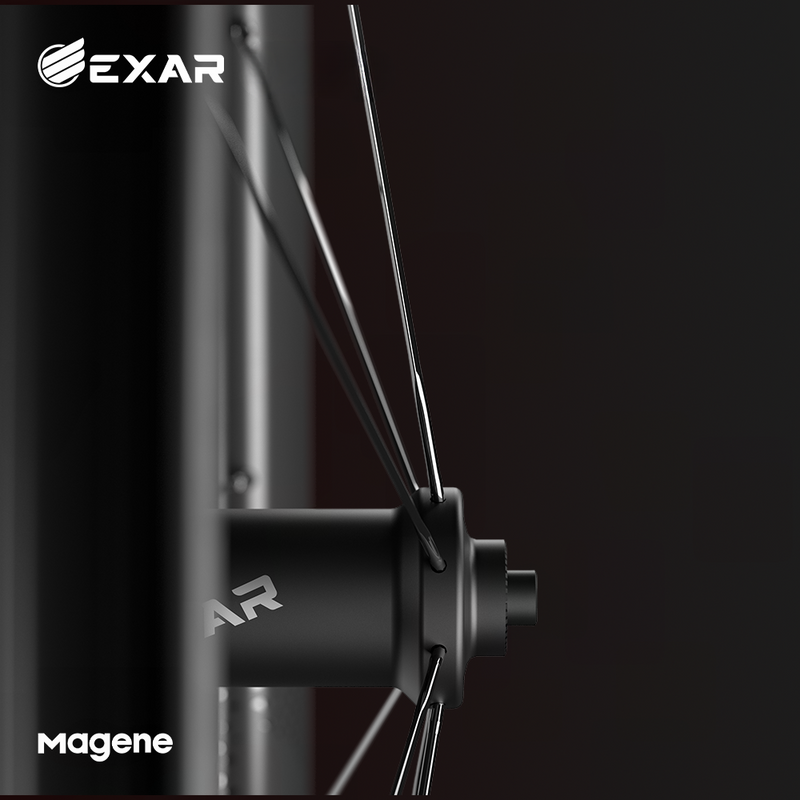

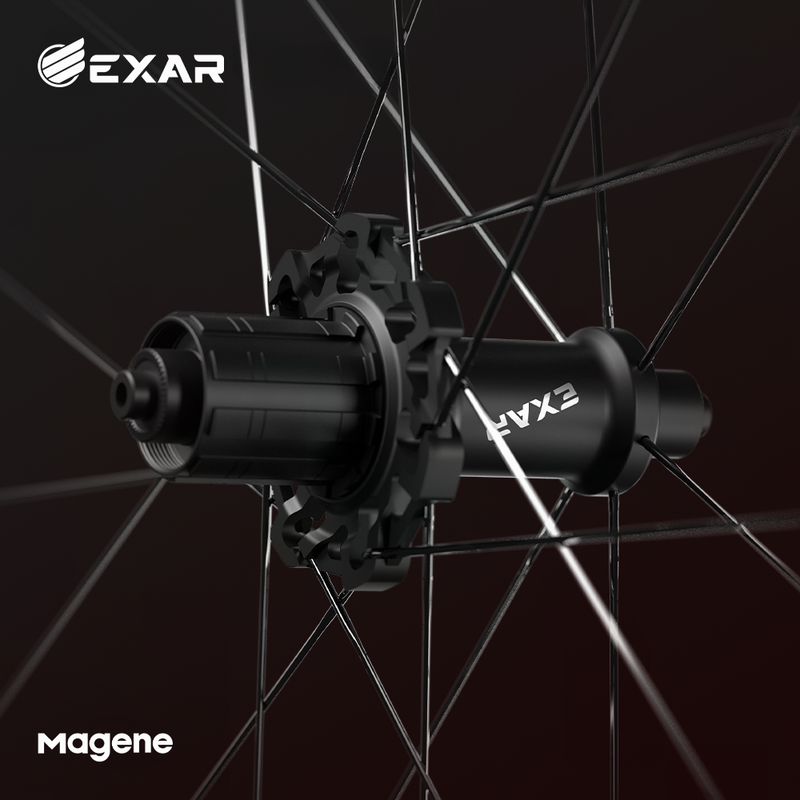

ELABORATE HUB STRUCTURE

The rear-wheel hub WR size is increased to ensure consistent spoke tension on both driving and non-driving sides, hence delivering outstanding lateral stiffness.
Adopting FEA technology and conducting several tests to identify the maximum force on the hub, to get a light and sturdy hub.



Balance Stiffness

To obtain a better balance lateral stiffness, driving stiffness and braking effect, the front and rear spokes of the disc brake variants have applied a 2:1 balanced lacing pattern, and the hub geometry has been adjusted accordingly.
