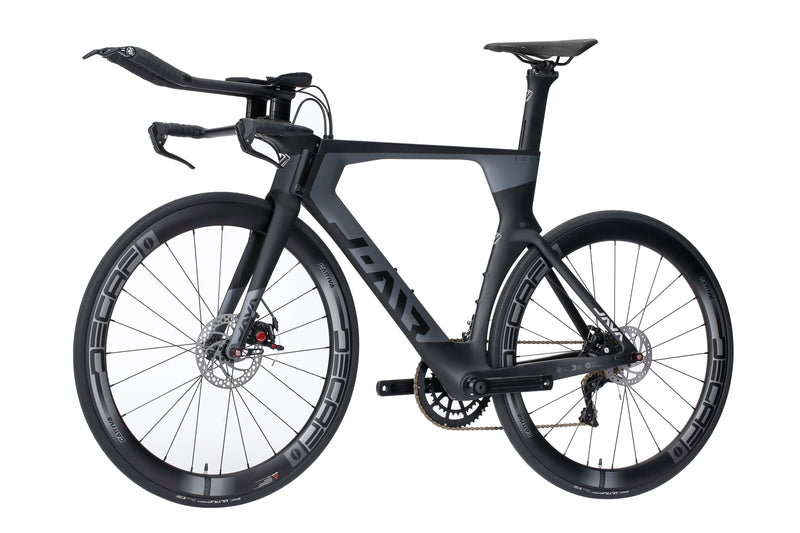

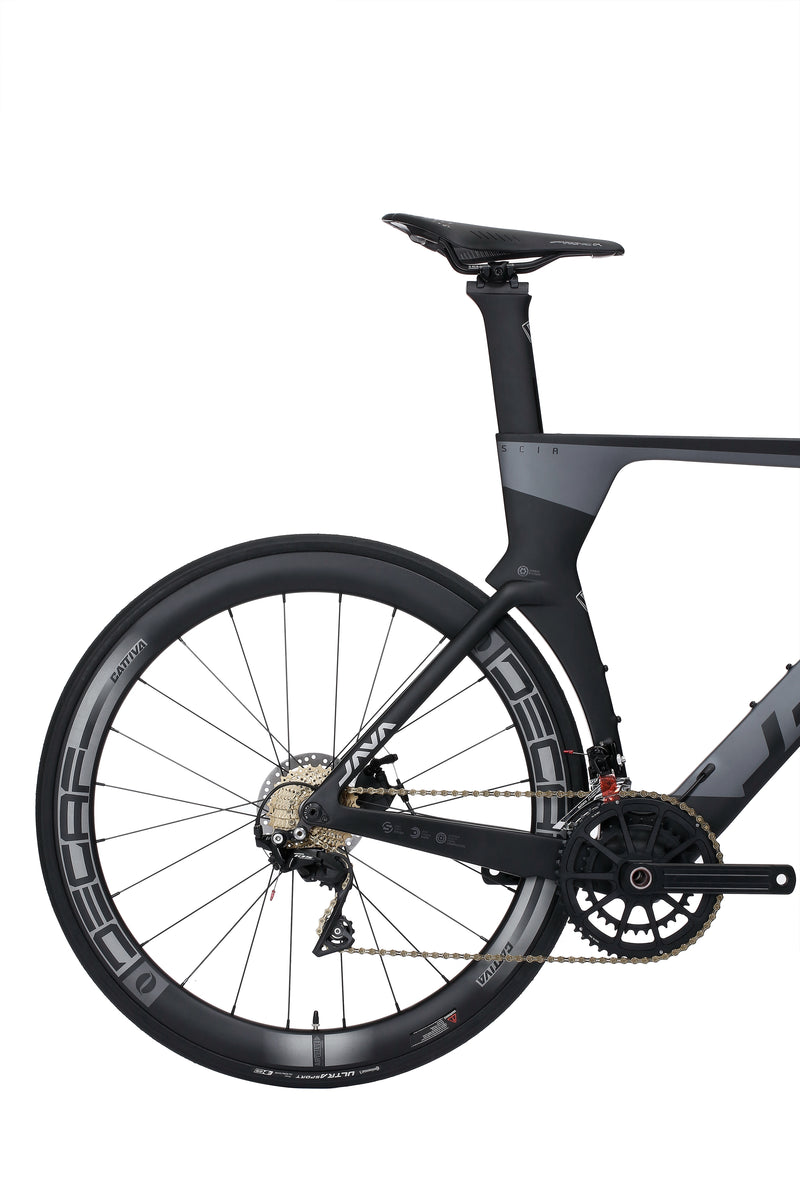

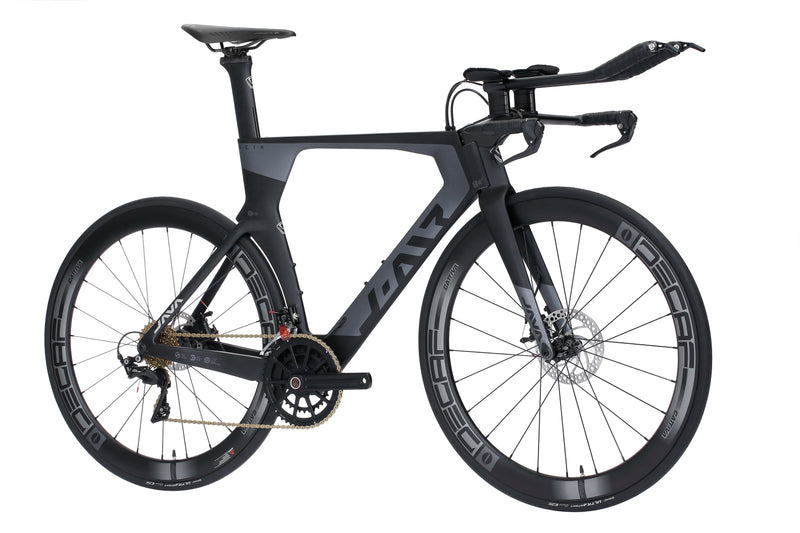

Frame:JAVA SCIA TT carbon fiber BB86 UD
Fork: Carbon UD aero Brake accept
Handle stem:TT Carbon fiber UD

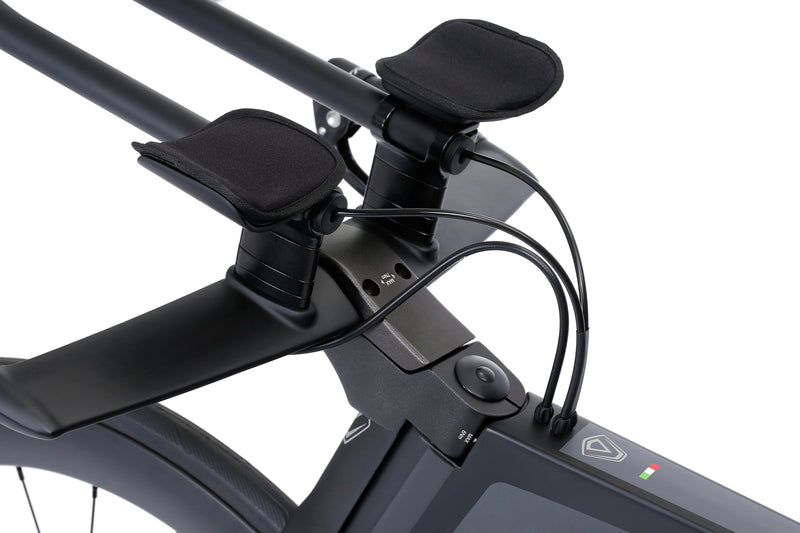

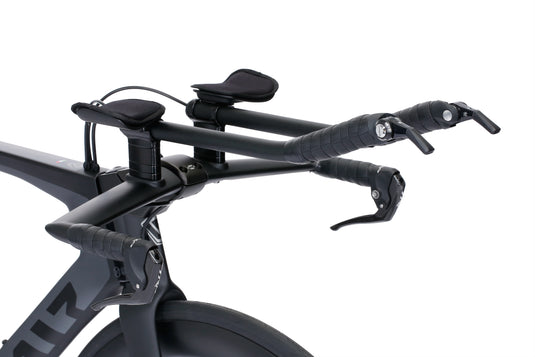

Handle Bar:TT Crbon UD

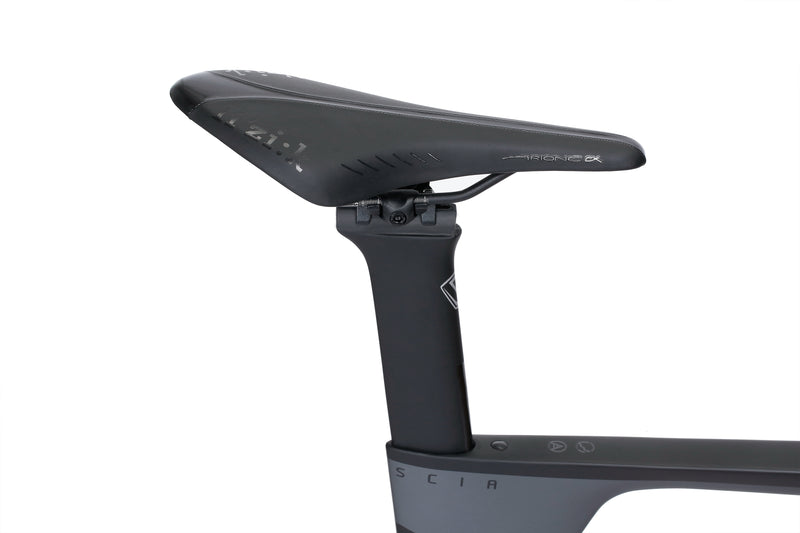

Seat Post: Carbon fiber Aero
Saddle: FIZIK
Wheels: JAVA DECA carbon wheels,50mm height,4Bearing hubs, Alloy 42mm height
Shifters: Shimano 105 ST-R7000,2*11 for TT 11Speed

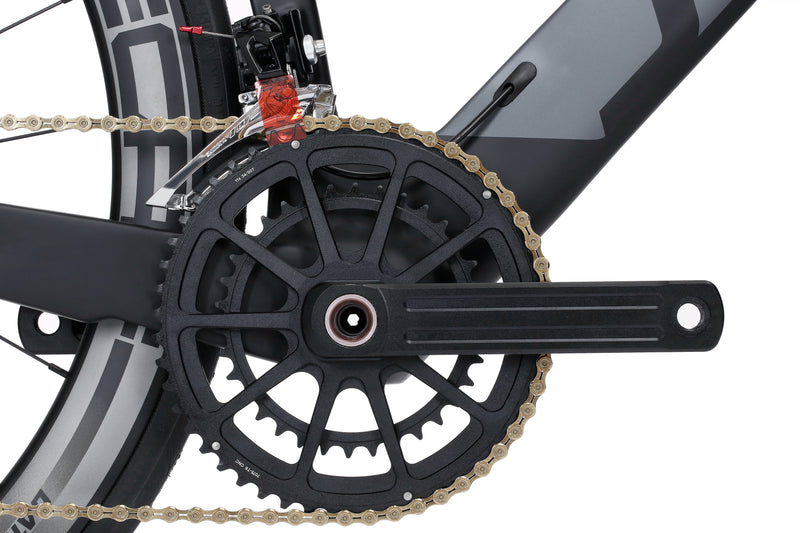

Crank: DECA CNC 50/34T*170mm
Front derailleur: Shimano 105 FD-R7000,11Speed

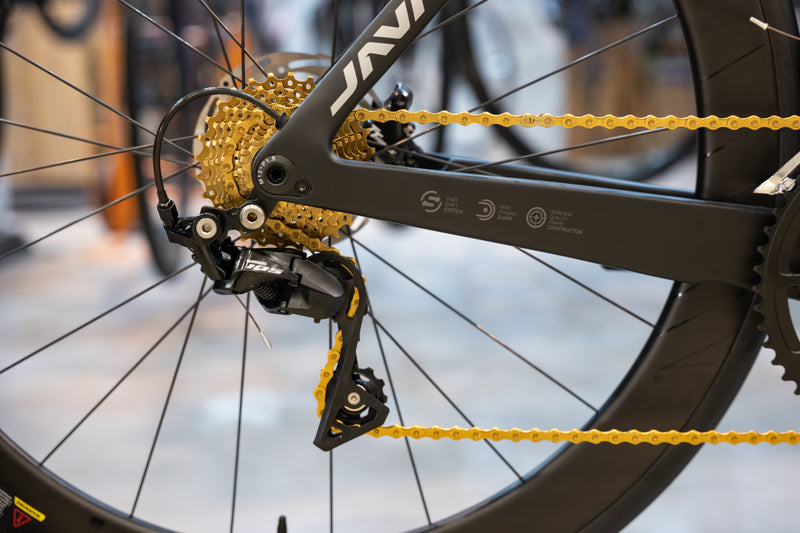

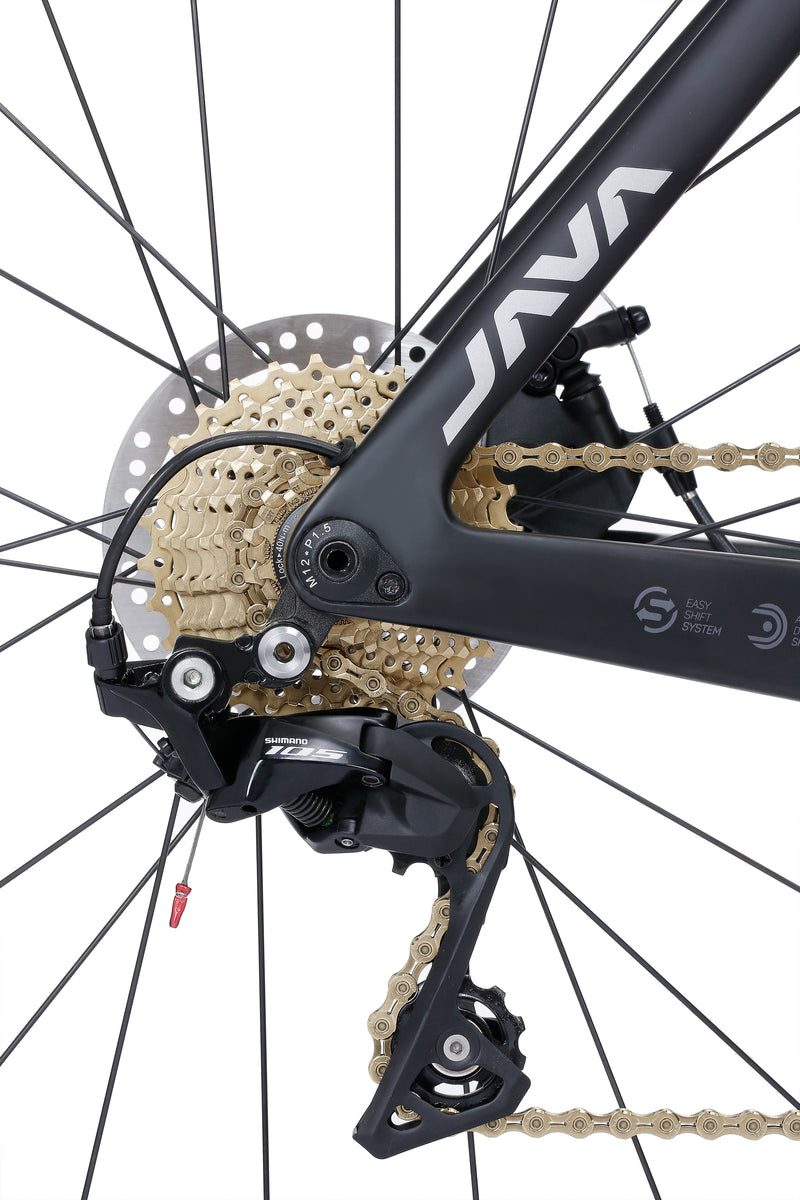

Rear derailleur: Shimano 105 RD-R700,11Speed
Cassette: 11-28T,11s
Chian: KMC Z11S

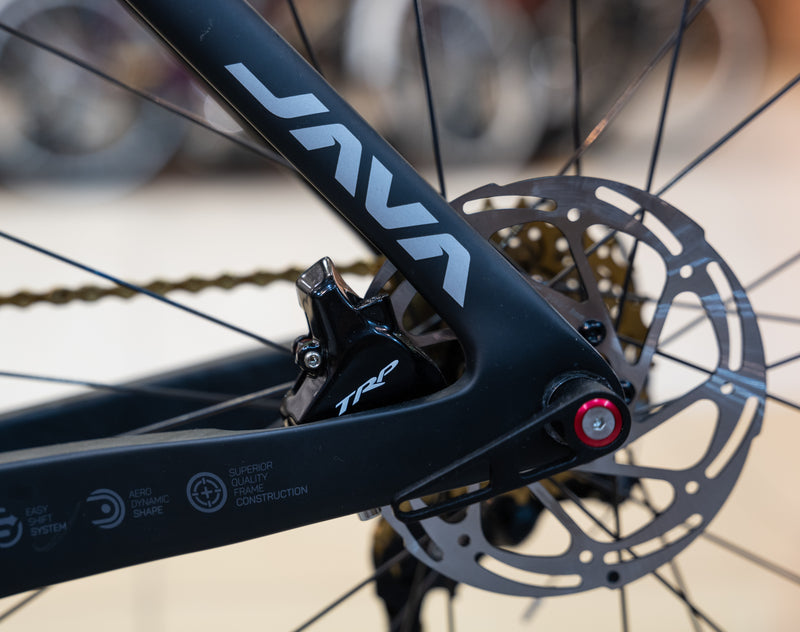

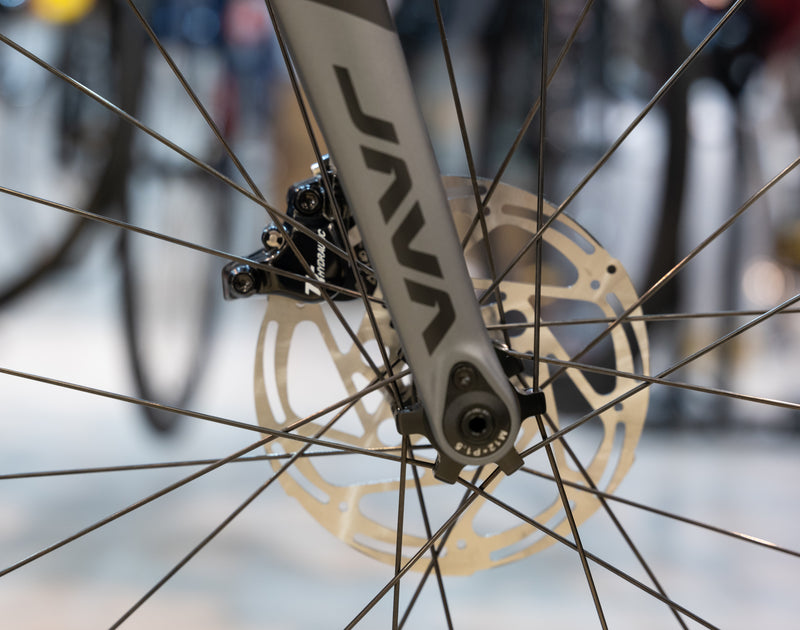

Brakes: TRP Hydraulic brakes, 160mm rotors
Weight:8.5KG
Size Chart:
- 45:156-164cm
- 49:163-174cm
- 52:174-182cm
- 54:180-190cm
- 56:188-198cm
| Frame size number | 450 | 490 | 520 | 540 | 560 | |
| Body height in mm | ≤164 | 163-174 | 174-182 | 180-190 | ≥188 | |
| B-Seat tube | 449.5 | 529.3 | 540 | 557 | 575 | |
| A-Seat tube angle | 75° | 75° | 75° | 75° | 75° | |
| L-Head tube length | 61 | 71.5 | 82.1 | 99.1 | 118 | |
| Q-Head angle | 71° | 72° | 73° | 73° | 72° | |
| N-Effective top tube | 501.4 | 511.6 | 534.1 | 553.7 | 570 | |
| H-Bottom bracket drop | 75 | 75 | 75 | 75 | 75 | |
| G-Chainstay length | 400 | 400 | 400 | 400 | 400 | |
| F-Offset | 45 | 45 | 45 | 45 | 45 | |
| W-Wheelbase | 950.8 | 952.8 | 970.8 | 991.2 | 1010.8 | |
| C-Standover height | 733.1 | 776.7 | 786.2 | 803 | 820.8 | |
| R-Frame reach | 375.9 | 382.1 | 395.1 | 414.6 | 431.1 | |
| S-Frame stack | 468.3 | 511.9 | 521.4 | 538.2 | 556 | |
|
700C | 700C | 700C | 700C | 700C |
