◆ 3-in-1 Core System (HTII / DUB / 3D+)
◆ G5 Ceramic Bearing / P05 Steel Bearing
◆ 16 Notch Standard BB Too
The 3 in 1 Core System BB set can accommodate for three different crank spindle specifications. Easily switch between different cranks without the need to change the Bottom Bracket.
Compatible with the universal BB tool with an O.D. 44mm, eliminating the need for various specialized tools.
The ceramic bearings utilize G5-grade ceramic balls and are paired with precisely machined steel race, delivering excellent rotational performance for riders.

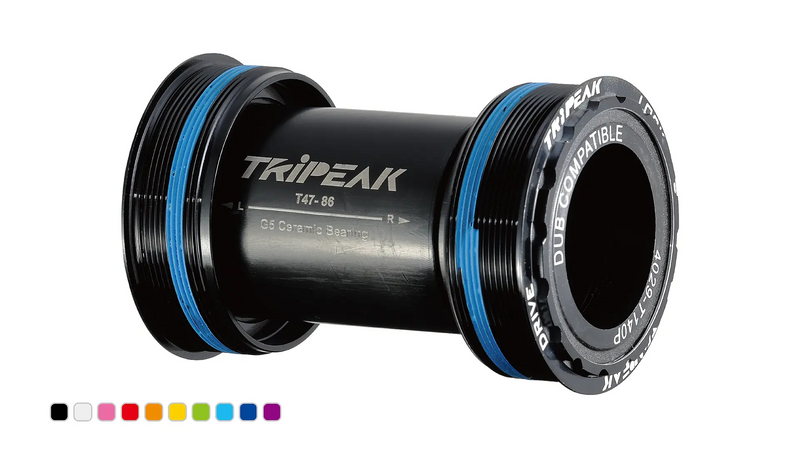

| T47 86mm (Road) : 3-in-1 | |
| Type | Road Bike |

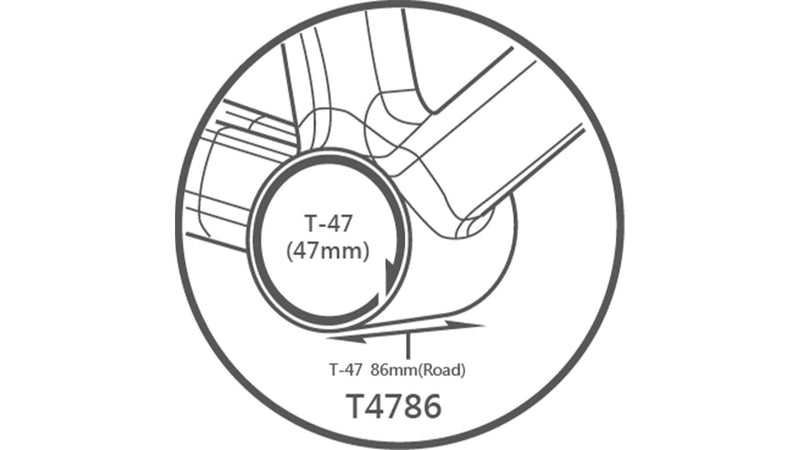

| Frame Spec | T47 DIA.47mm x Width 86mm |
| Crank Spec | SHIMANO HTII (dia.24mm) SRAM DUB (dia.28.99mm) ROTOR 3D+ (dia.30mm) |
| Bearing | G5 Ceramic Bearing P05 Steel Bearing |
| Tool Notch | Notch : 16T O.D. : 44mm |
| Material | Cup : Alloy 6061 Sleeve : PA+GF composite material |
| Accessories | 30mm Cap*2 28.99mm Cap*2 28.99mm Spacer*1 (Drive Side) 24mm Cap*2 |
| Color | Black |
| Weight | G5 : 74g/set (w/o cap) P05 : 77g/set (w/o cap) |
TRiPEAK BB Installation-For T47 86mm-Road 3 in1 Core System
Manual PDF Download
