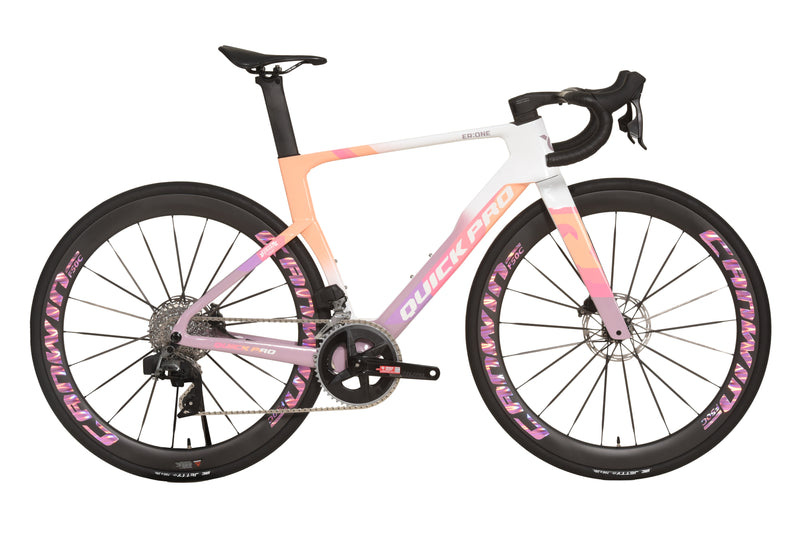

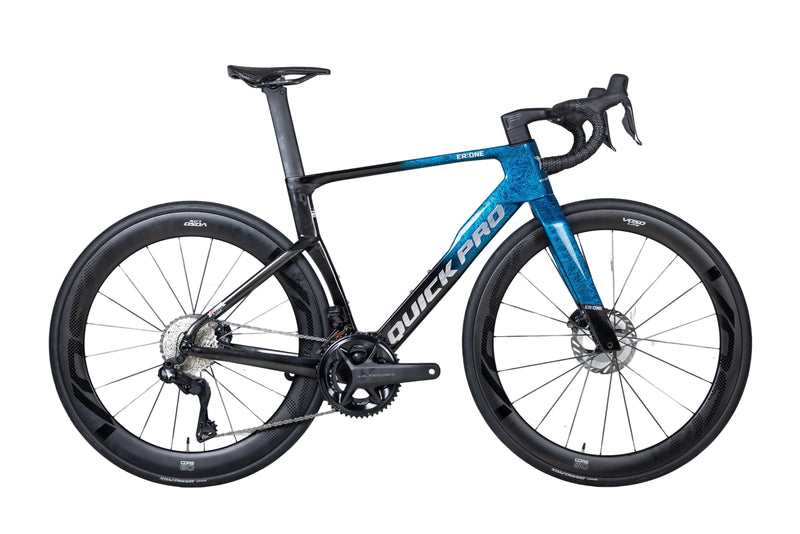

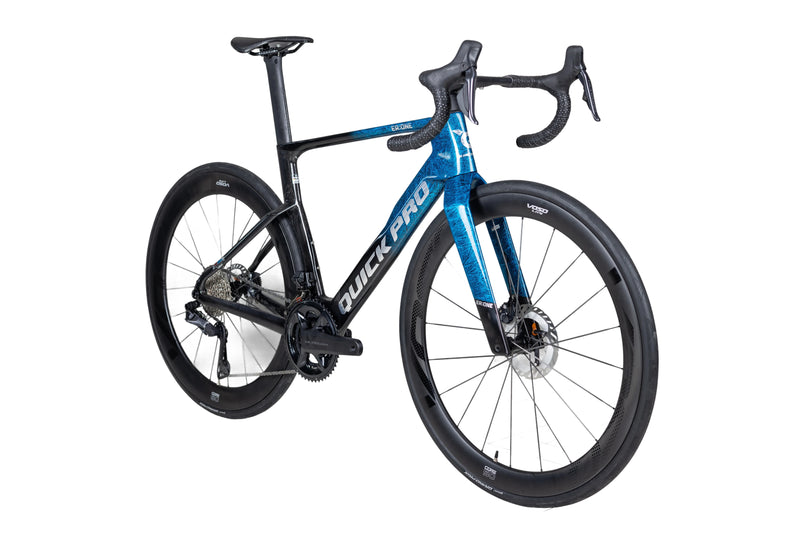

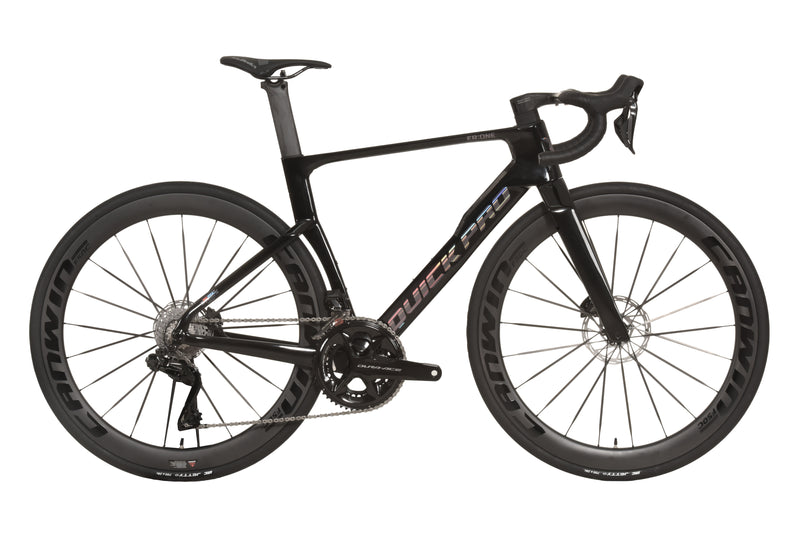

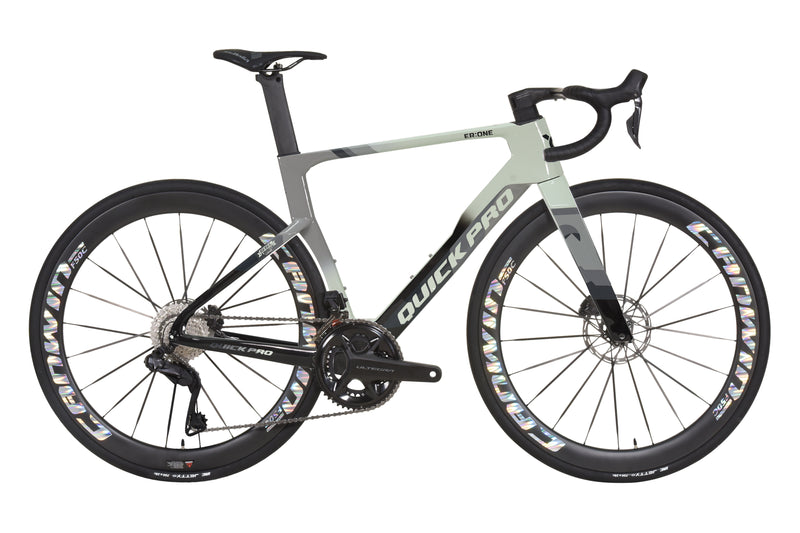

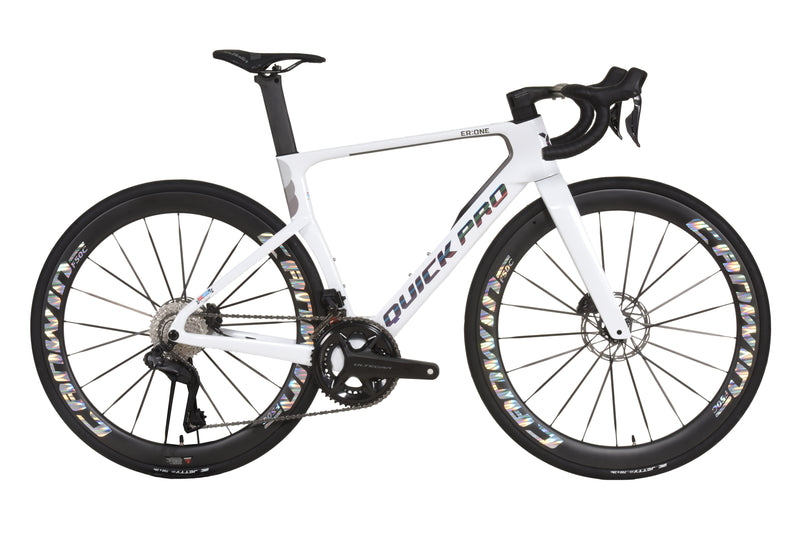

Quickpro ER:ONE
Engineered for pure speed and podium finishes. The ER:ONE is Quickpro’s flagship aerodynamic weapon, crafted from a sophisticated blend of T1100 and M65 high-modulus carbon fiber. With a design focused on minimizing drag and maximizing power transfer, it is the ultimate choice for sprinters and breakaway specialists who refuse to compromise.
Bike shown for illustrative purposes only. Actual specifications are subject to the official build list.
Features
-

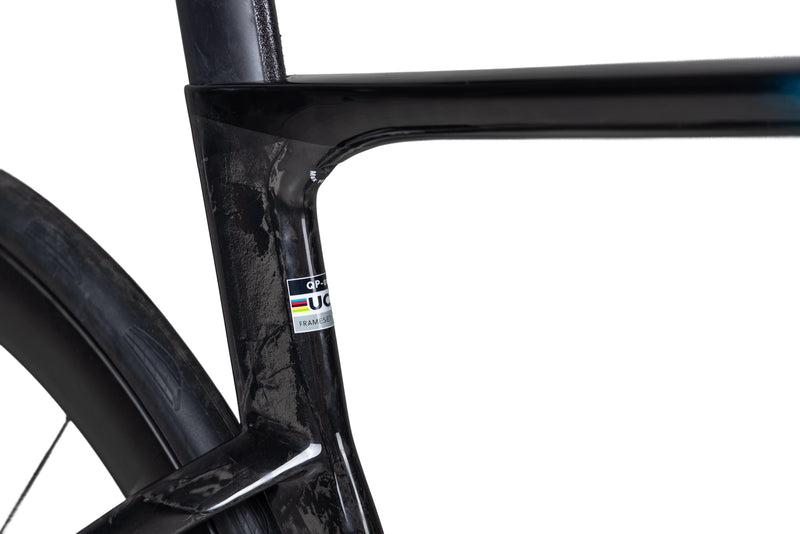

🏆 Pro-Peloton Proven Tested and raced by the Quick Continental Team, the ER:ONE has secured multiple victories in international UCI races, including the Tour of Hainan. This frameset is UCI Approved, meeting the highest standards for professional competition.
-

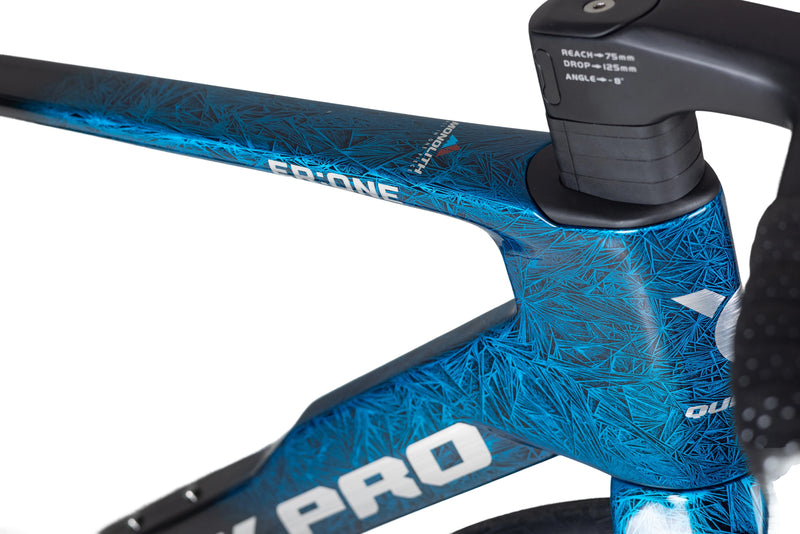

💨 Advanced Aerodynamic Profile Utilizing CFD (Computational Fluid Dynamics) optimization, the deep-section head tube and down tube effectively slice through the wind. The distinctive wide-stance fork design manages turbulent air from the spinning front wheel, significantly reducing overall system drag.
-
⚖️ Ultralight & Ultra-Stiff Constructed using True Full Monocoque technology, the ER:ONE weighs approximately 840g (Size M). The T1100 + M65 layup provides an exceptional stiffness-to-weight ratio, ensuring that every watt of your power is translated into forward motion.
-
🛠️ Modern Performance Standards Equipped with a T47 threaded Bottom Bracket, the ER:ONE offers the stiffness of oversized shells with the reliability and silent operation of a threaded system. Full internal cable routing supports both mechanical and electronic (Di2/eTap) groupsets for a clean, cockpit-free aesthetic.
Specification
Frame: QuickPRO ER:ONE Carbon Frame
Fork: QuickPRO ER:ONE Carbon Wide Fork,Flat Mount Disc, Internal Cable Routing,100x12mm Thru-Axle

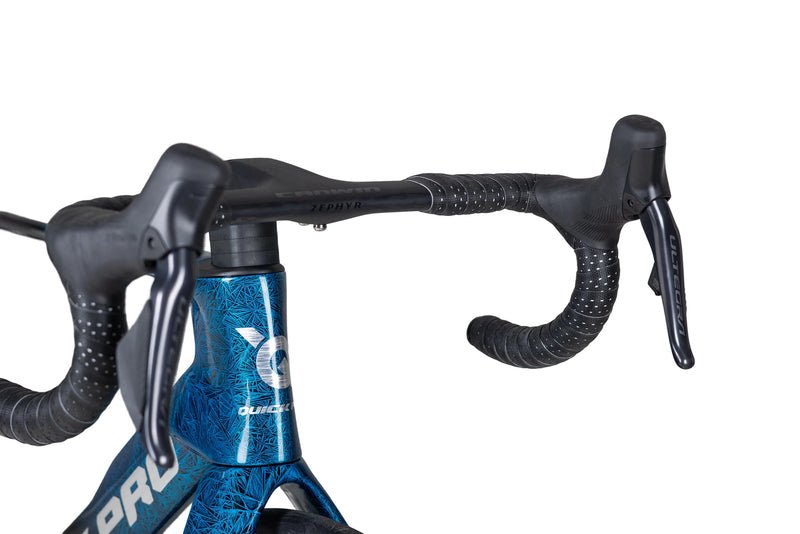

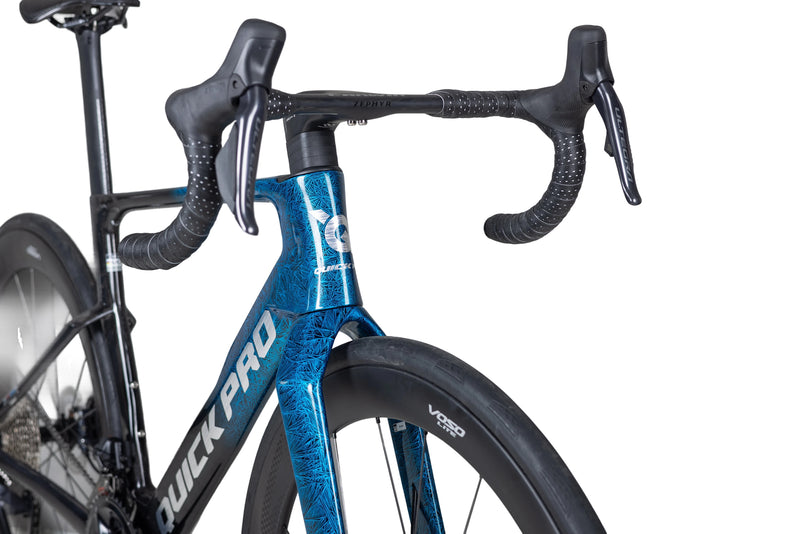

Handlebar: Canwin ZEPHYR SSL Carbon Aero Integrated Handlebar
Seatpost: QuickPRO Aero Carbon Seatpost
Wheelset: VOSO Lite Core 60mm carbon spokes carbon wheelset 1400g
Tires:Continental Grand Sport Prix STR Tubeless 700*28c Tire

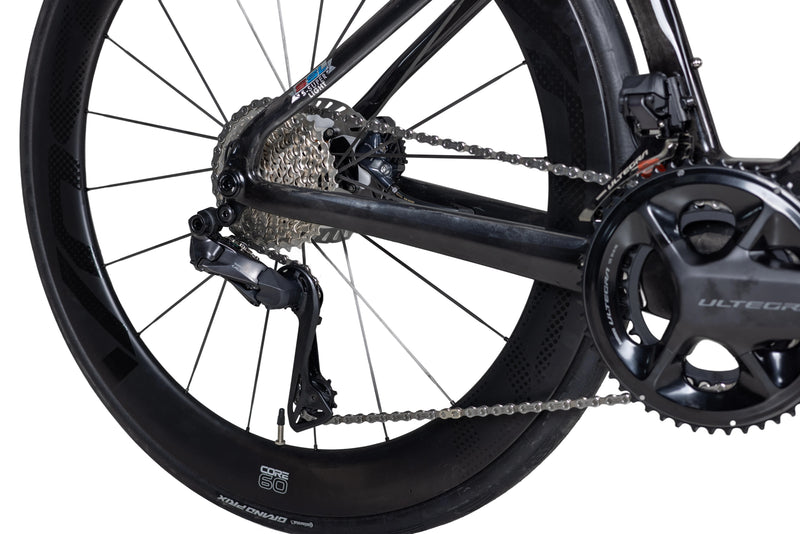

Groupset (Shimano Ultegra R8100 2x12-Speed)
-
Shifters: Shimano Ultegra ST-R8170
-
Front Derailleur: Shimano Ultegra FD-R8150
-
Rear Derailleur: Shimano Ultegra RD-R8150
-

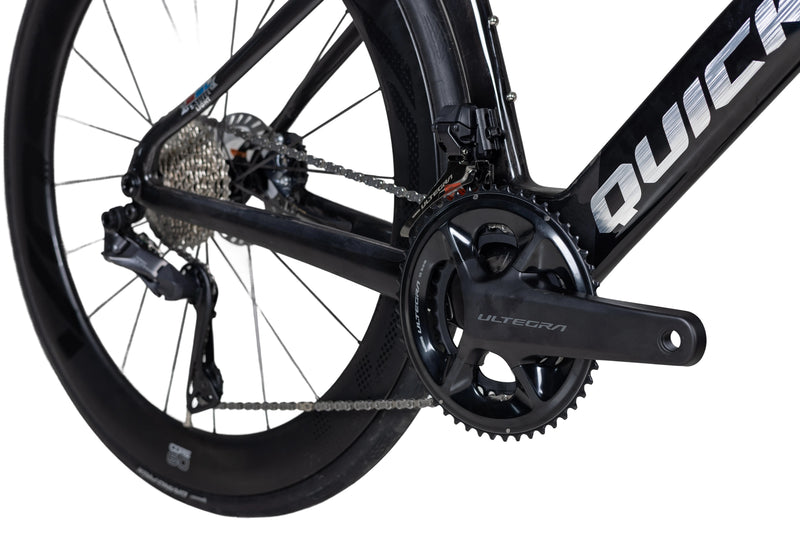

Crankset: Shimano Ultegra FC-R8100 50/34T
-
Cassette: Shimano Ultegra CS-R8101 11-34T
-
Chain: Shimano Ultegra CN-M8100
-
Brake Calipers: Shimano Ultegra BR-R8170
-
Rotors: Shimano RT-CL800
Cockpit & Contact Points
-
Saddle: Riro SD5 carbon 3D Printed Saddle
Weight: 7.5 kg in Size M
Size & Fit Guide (Geometry Summary)
| Frame Size | Recommended Rider Height |
| XS (430) | 160cm - 168cm (5'3" - 5'6") |
| S (460) | 166cm - 174cm (5'5" - 5'8") |
| M (490) | 172cm - 180cm (5'7" - 5'11") |
| L (520) | 178cm - 186cm (5'10" - 6'1") |
| XL (550) | 184cm - 192cm (6'0" - 6'3") |
| XXL (584) | 190cm+ (6'3"+) |
Quality Assurance
-
X-Ray Inspected: Every ER:ONE frame undergoes X-ray non-destructive testing to ensure structural integrity and wall-thickness consistency.
-
Warranty: 5-Year Limited Global Warranty on the frameset.
About Handlebar

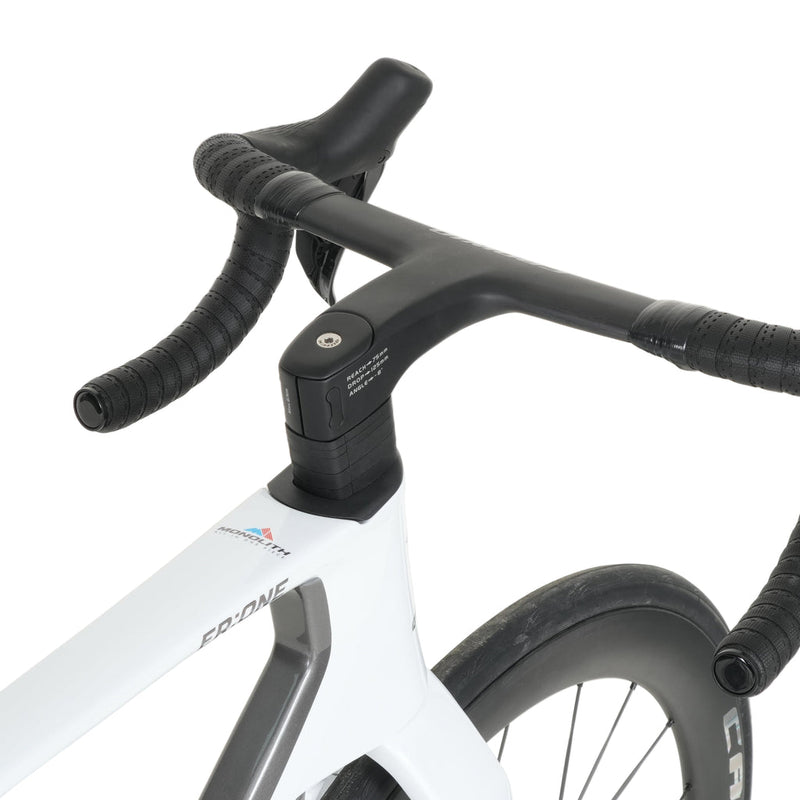

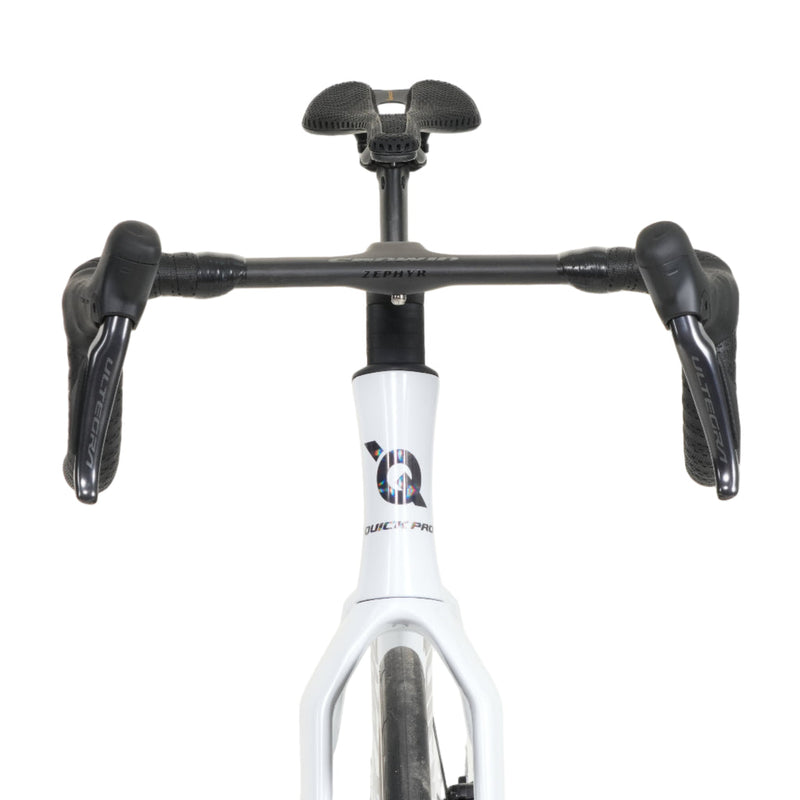

The ER:ONE is originally matched with the Canwin ZEPHYR handlebar. If you choose a third-party handlebar we provide, such as PVUUU, it can also be installed without issue. However, the fit at the head tube will not be as seamless, and there will be a 2–3 mm gap. Please consider this carefully before making your selection
- Model:ZEPHYR-SSL
- Material:High-strength, high-modulus carbon fiber
- Weight:288g±3%（380×90mm including accessories)
