Clearance reason: Limited Size , Color and quantity

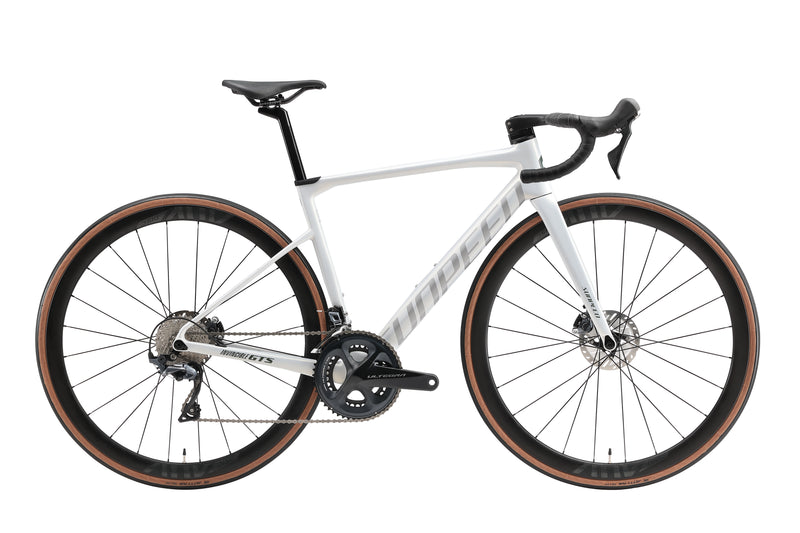

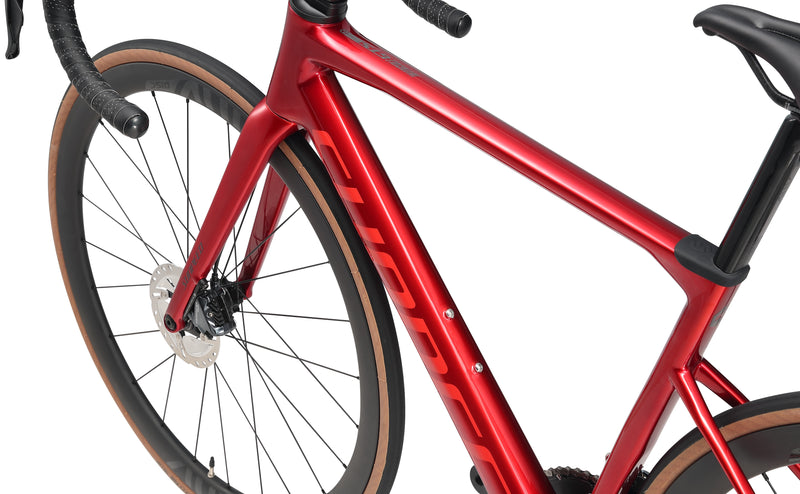

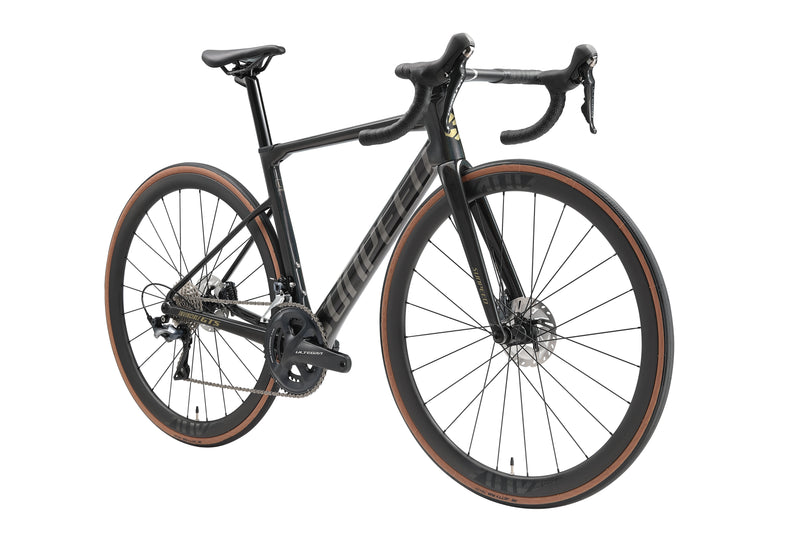

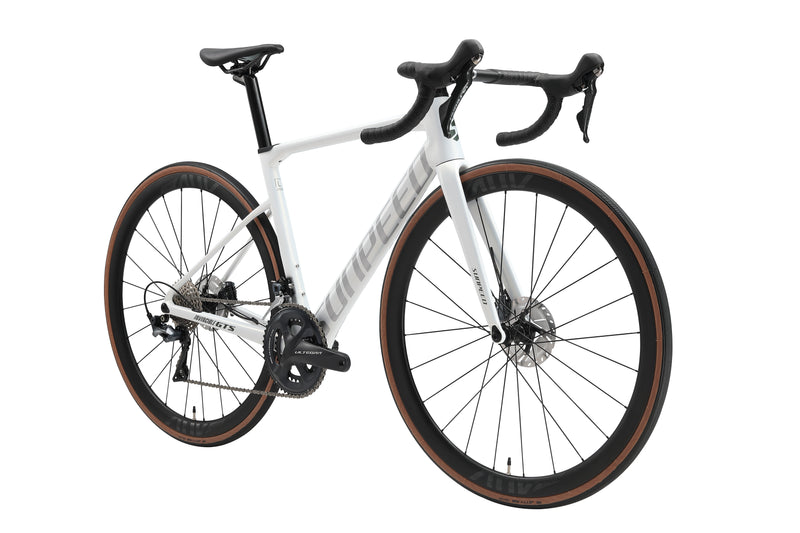

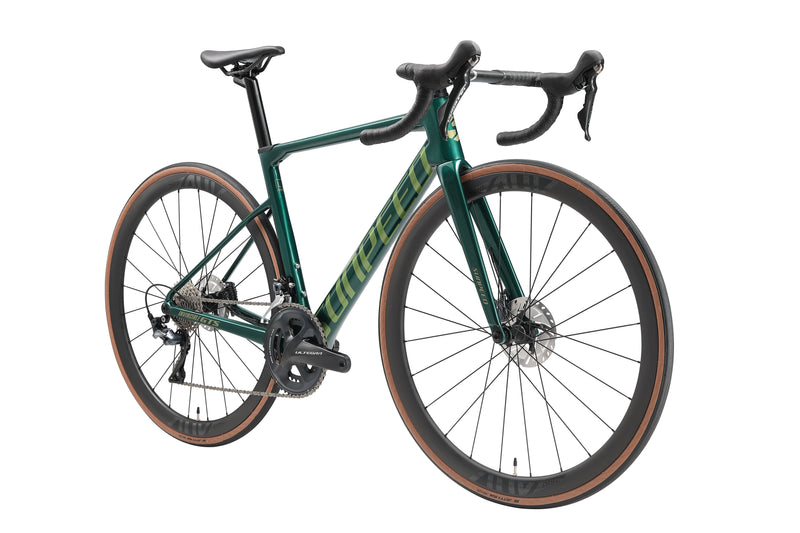

Sunpeed Invincible GTS is a speed machine, it has an aerodynamic high-modulus carbon fiber frame, carbon wheelset, and carbon integrated handlebar. Full Shimano 105 R7020 groupset included 7.8kg in L size only.
FRAMESET
- FRAME: SUNPEED INVINCIBLE GTS Carbon FRAME 700C thru-axle Q12
- FORK: SUNPEED INVINCIBLE GTS Carbon 700C thru-axle Q12
WHEELS
- FRONT HUB:HUB :ANV M300 Q12 20H Alex Aluminium 2 Sealed bearings
- REAR HUB:ANV M300 Q12 24H Alex Aluminium 4 Sealed bearings
- SPOKES/NIPPLES: Pillar Competition Stright Pull
- RIMS: ANV C38 Carbon wheels 700*38mm
- TIRE: IRC JETTY Plus 700Cx25C Presta
DRIVETRAIN
- SHIFTER: Shimano 105 R7020 22spd
- FRONT DERAILLEUR: SHIMANO 105 R7000 22spd
- REAR DERAILLEUR: SHIMANO 105 R7000 22spd
- CASSETTE: SHIMANO 105 R7000 11/32 22spd
- CRANKSET:SHIMANO 105 R7000 50/34T 170mm
- BOTTOM BRACKET: GINYAN BB86
- CHAIN: KMC X11
BREAK GROUP
- BRAKES: Shimano 105 R7020 Hydraulic disc brake aluminum 160mm
- BRAKE LEVERS: SHIMANO 105 R7020
COMPONENTS
- SEAT POST: ANV Carbon
- SADDLE: SUNPEED Carbon road saddle
- HEADSET: ANV Completely Hidden
- STEM: ANV carbon aluminum integrated
- HANDLEBAR: ANV Carbon integrated
- Bar tape: ODI Ultralight LOCK on Grip
- PEDALS: SUNPEED ASX Aluminium
WEIGHT: 7.8KG in L size
Choose Your Size：
- S: 150-160cm height
- M: 158-168cm height
- L: 165-175cm height
- XL: 170-180cm height
- XXL: 178-188cm height
|
Size |
S | M | L | XL | XXL |
| Rider Height Suggestion cm | 150-160 | 158-168 | 167-177 | 175-185 | 183-194 |
| Stack mm-（C） | 500 | 514 | 527 | 565 | 574 |
| Reach mm(reach)-(B) | 360 | 375 | 380 | 395 | 405 |
| Seat Tube mm-(D) | 400 | 431 | 463 | 485 | 502 |
| Top Tube mm(tt)-(E) | 490 | 508 | 531 | 558 | 575 |
| Head Tube mm(ht)-(F) | 105 | 115 | 126 | 143 | 163 |
| Seat Tube Angle(sa)-(G) | 75.5 | 75.5 | 74 | 74 | 73.5 |
| Head Angle(ha)-(K) | 70.5° | 71.75° | 72.5° | 73.5° | 73.5° |
| Front Center mm(fc)-(N) | 563 | 574 | 577 | 590 | 602 |
| Wheelbase mm(wb)-(H) | 958.9 | 972.5 | 974.8 | 988.6 | 1000.7 |
| BB Drop mm(drop)-（J） | 74 | 74 | 74 | 74 | 74 |
| Fork Length mm(fl)-(L) | 363 | 363 | 363 | 363 | 363 |
