- The new Sunpeed Galaxy further enhances its frame structure, and the strength test results of the bicycle frame have improved by 1.5 times compared to the previous generation.
- The new Sunpeed Galaxy bicycle frame is made using a more advanced aluminum alloy manufacturing process, making the entire vehicle 15% lighter than the previous generation.
- The new Sunpeed Galaxy further optimizes its wind resistance design, improving the cycling efficiency of the rider by 20% compared to the previous generation.
FRAMESET

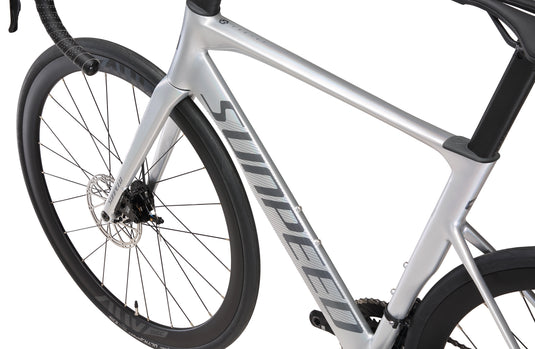

- FRAME: SUNPEED Galaxy Ultralight Aluminium aerodynamic frame 700C disc Cables invisible structure thru-axle Q12
- FORK: SUNPEED Galaxy Carbon 700C disc Cables invisible thru-axle Q12
WHEELS
- FRONT HUB:HUB:ANV M0286F Q12 24H AXLE 2 Sealed bearings
- REAR HUB:ANV M0286F Q12 24H AXLE 4 Sealed bearings
- SPOKES/NIPPLES: SLE stainless steel Competition Stright Pull
- RIMS: ANV Alloy Aluminium Wheelset 30-T25mm disc
- TIRE: Continental Ultra SportIII 700C*28C 123PSI F/V

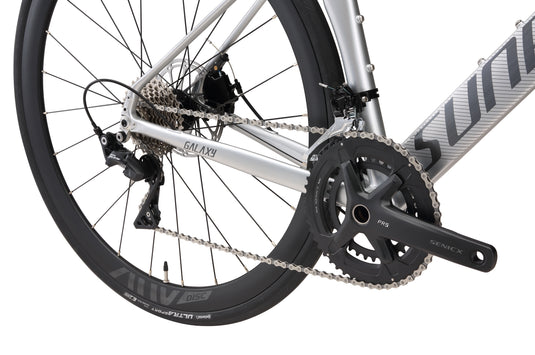

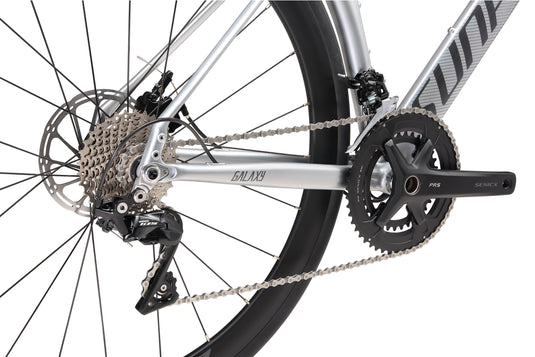

DRIVETRAIN
- SHIFTER: Shimano 105 R7000 22spd
- FRONT DERAILLEUR: SHIMANO 105 R7000 22spd
- REAR DERAILLEUR: SHIMANO 105 R7000 22spd
- CASSETTE: SUNSHINE CS-HG11R 11-32T 11S
- CRANKSET:SENICX PR5 Integrated Alloy TT 50/34 172.5mm
- BOTTOM BRACKET: SENICX BB-BSA 24R
- CHAIN: KMC X11
BREAK GROUP

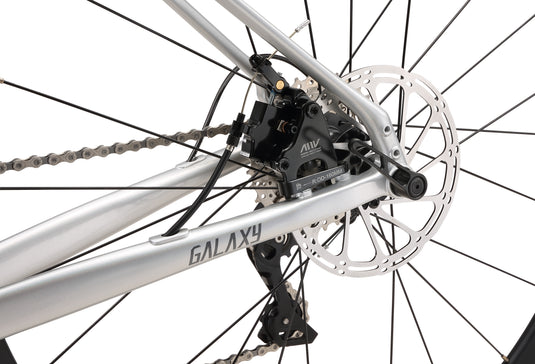

- BRAKES: ANV 5.0 Semi-Hydraulic disc brake aluminum 160mm with JAGWIRE High precision grinding inner wire and oil-injected outer cable
- BRAKE LEVERS: SHIMANO 105 R7000
COMPONENTS
- SEAT POST: SUNPEED Galaxy Aluminium aero 350MM
- SADDLE: ANV VM short nose carbon saddle
- HEADSET: GINEYEA Completely Hidden Sealed Cartridge Bearings
- HANDLEBAR: ANV alloy aluminum integrated
- PEDALS: NECO Aluminium pedals
WEIGHT: 9.8 KG in M size
Choose Your Size:
- S: 153-163cm height
- M: 163-173cm height
- L: 173-183cm height
- XL: 183-193cm height
Size | S | M | L | XL |
Rider Height CM | 153-163 | 163-173 | 173-183 | 183-193 |
Stack mm-(C) | 516 | 530 | 552 | 571 |
Reach mm(reach)-(B) |
377 | 385 | 387 | 393 |
Seat Tube mm-(D) | 450 | 480 | 510 | 540 |
Top Tuble mm(tt)-(A) | 522.7 | 525.7 | 543.7 | 554.5 |
Head Tube mm(ht)-(F) | 122 | 140 | 160 | 180 |
Seat Tube Angle(sa)-(G) | 74.2° | 74.2° | 74.2° | 74.2° |
Head Angle(ha)-(K) | 72° | 71.2° | 72° | 72° |
Rear Center MM(rc)-(I) | 410 | 410 | 410 | 410 |
Front Center MM(fc)-(N) | 575.1 | 595.9 | 597 | 609 |
Wheelbase MM(wb)-(H) | 974.5 | 995.5 | 996.6 | 1008.7 |
BB Drop MM(drop)-(J) | 71 | 71 | 71 | 71 |
Fork Length MM(fl)-(L) | 364 | 364 | 364 | 364 |
Fork Rake MM(fr)-(M) | 47 | 47 | 47 | 47 |
Handlebar width | 380 | 400 | 400 | 420 |
Riser length-(E) | 80 | 90 | 90 | 100 |
Crank length | 165 | 170 | 170 | 172.5 |
