The flat road bike series LEGEND is a reliable assistant on commuting roads. LEGEND Monument can also help you find peace amid chaos, from libraries to cafes, and even to the suburbs in search of delicious food.
Measuring the City — The Best Partner for Commuting
The LEGEND SPORT flat bar road bike is the best choice for commuting and urban cycling. The frame and fork are made of 6061 T6 aluminum which is reliable and lightweight. The relaxed geometry helps you move confidently through busy cities. Equipped with 700*30c tires, urban cycling is a sure thing.
Expandable Loading — Liberating Shoulder Riding
Since it's not a serious cycling workout, why not let LEGEND SPORT take on more for you. LEGEND SPORT can expand more loading space and the frame has multiple holes for compatibility with rear racks, mudguards, and other accessories.
Features:
Hybrid Design: The Pardus Legend Sport features a hybrid design that combines the best features of road and mountain bikes, making it a versatile choice for both urban and off-road adventures.
Shimano Altus M315: The bike's Shimano Altus M315 3x8-speed drivetrain offers smooth and reliable shifting, ensuring you can easily tackle a variety of terrain.
Lightweight Aluminum Frame: The full aluminum alloy frame of the Pardus Legend Sport provides durability and strength while keeping the weight of the bike relatively low, allowing for better handling and maneuverability.
Comfortable Ride: The bike's ergonomic saddle and adjustable handlebar height provide a comfortable ride, whether you're commuting to work or taking a leisurely ride on the weekend.
Versatile: The Pardus Legend Sport is suitable for a wide range of riders, from beginners to experienced cyclists, making it a great choice for those looking for a reliable and versatile bike for various riding needs.
Specification
- Frame: LEGEND SPORT,AL6061 T6 Aluminum,Post Mount,35×5mm Quick Release
- Fork: LEGEND SPORT,AL6061 T6 Aluminum,Post Mount,100×5mm Quick Release
- Shifter: shimano ALTUS M315,3×8 speed
- Front derailleur: shimano ALTUS FD-TY710
- Rear derailleur: shimano ALTUS RD-M310-Smart,32T MAX
- Crank: PROWHEEL SWIFT-201P,48-38-28T
- Cassette: shimano HG200-8
- Chain: KMC Z8
- Bottom Bracket: BB73-68mm,BSA,Sealed Cartridge
- Brake: shimano MT200 Hydraulic Disc Brake
- Wheel: PARDUS PR-27 Aluminum DISC RIM,700c,27mm rim width,18mm rim depth,6 bolt, front 100×5mm Quick Release, rear 135×5mm Quick Release
- Tire: KENDA K1257 700×32c
- Saddle: PARDUS 145×250mm

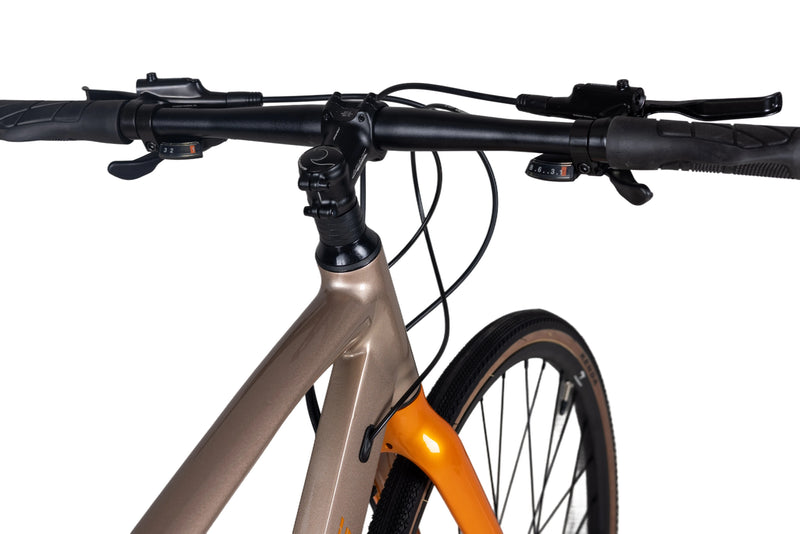

- Handlebars: MVMT M-BLACK AL6061 T6,5 degree,31.8mm
- Stem:MVMT M-BLACK AL6061 T6 3D forged and CNC +7°
- Seat Post: MVMT M-BLACK AL6061 T6 3D forged 15mm Offset,30.9X350mm
- Weight: 12.5kg
Size Chart
- XS:155-165cm
- S :164-174cm
- M :170-180cm
- L: 178-190cm
| LEGEND Geometry | ||||
| Size | XS | S | M | L |
| Reach | 360 | 375 | 388 | 400 |
| Stack | 555 | 580 | 599 | 620 |
| Bike standover height | 770 | 787 | 808 | 830 |
| Top tube length(Horizontal) | 509 | 536 | 560 | 578 |
| Head tube angle | 69.5 | 70 | 70 | 71 |
| Seat tube angle | 75 | 74.5 | 74 | 74 |
| Wheelbass | 1029 | 1048 | 1068 | 1077 |
| Chainstay length | 445 | 445 | 445 | 445 |
| Front center | 594 | 613 | 632 | 642 |
| BB drop | 70 | 70 | 70 | 70 |
| Seat tube length | 460 | 480 | 500 | 520 |
| Head tube length | 115 | 140 | 160 | 180 |
| Fork offset | 45 | 45 | 45 | 45 |
| Fork length | 422 | 422 | 422 | 422 |
| Stem length | 60 | 60 | 70 | 70 |
| Handlebar width | 640 | 640 | 640 | 640 |
| Crank length | 170 | 170 | 170 | 172.5 |
| Seat tube offset | -15 | -15 | -15 | -15 |
