JAVA IDRA Gravel Bike
Tax included.
Shipping calculated at checkout.
Specification
- Frame: JAVA Idra alloy gravel frame, Flat Mount Disc
- Fork: JAVA Idra alloy, 9mm quick-release Flat MountDisc
- Shifter: Shimano sora ST-R3000,9 Speed
- Front derailleur: Shimano sora FD-R3000

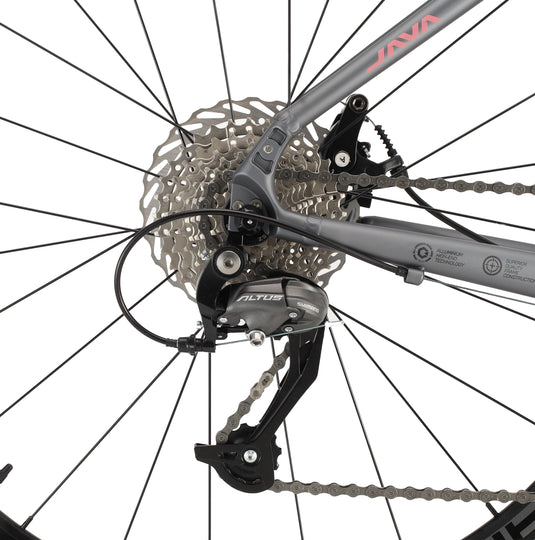

- Rear derailleur: Shimano RD-370-L, Altus SGS 9 speed
- Crank: Forged AL6061 alloy,50/34T*170mm
- Cassette: HR 11-32T 9 speed
- Chain: KMC Z9 112L
- Brake: JAVA DECA S6 Mechanical Disc Brake
- Wheelset: JAVA DECAF 40mm height alloy
- Tire: CST 700×40c
- Saddle: JAVA DECA ED

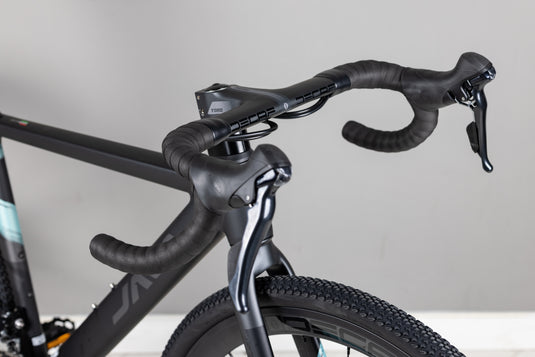

- Handlebars: JAVA DECA 380*83mm alloy Integrated gravel
- Seat Post: JAVA Idra aero alloy 300mm
- Pedal include
| Frame size number |
45 |
47 |
49 |
51 |
54 |
| Body height in mm |
≤162 |
162-168 |
168-174 |
174-180 |
≥180 |
| B-Seat tube |
450 |
470 |
490 |
510 |
540 |
| A-Seat tube angle |
75° |
75° |
74.5° |
74° |
74° |
| L-Head tube length |
100 |
100 |
105 |
130 |
165 |
| Q-Head angle |
71° |
71° |
71.5° |
72° |
72° |
| N-Effective top tube |
513.8 |
517.8 |
528.6 |
544.4 |
559.9 |
| H-Bottom bracket drop |
70 |
70 |
70 |
68 |
68 |
| G-Chainstay length |
425 |
425 |
425 |
425 |
425 |
| F-Offset |
45 |
45 |
45 |
45 |
45 |
| W-Wheelbase |
997.2 |
1001.2 |
1002.7 |
1010.6 |
1027.4 |
| C-Standover height |
736 |
750 |
766 |
789 |
819 |
| R-Frame reach |
371 |
375 |
379 |
383 |
389 |
| S-Frame stack |
532.8 |
532.8 |
539.4 |
563 |
596.2 |
| WHEEL SIZE |
700C |
700C |
700C |
700C |
700C |
