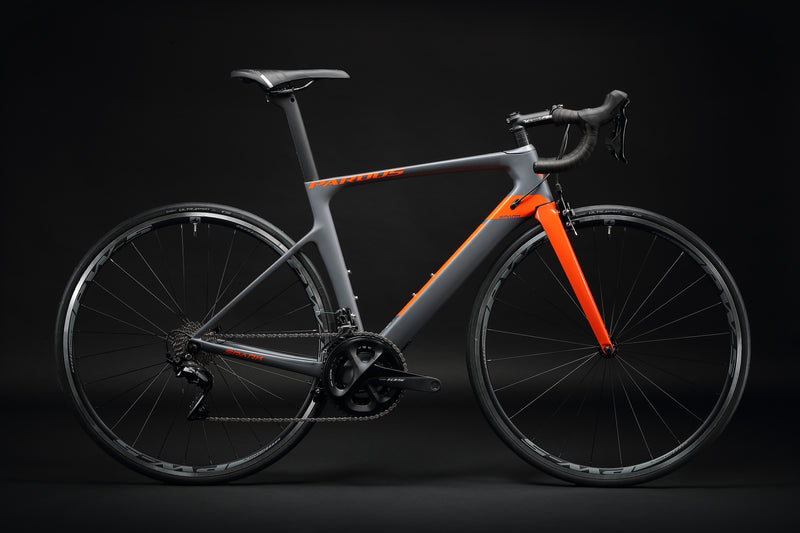

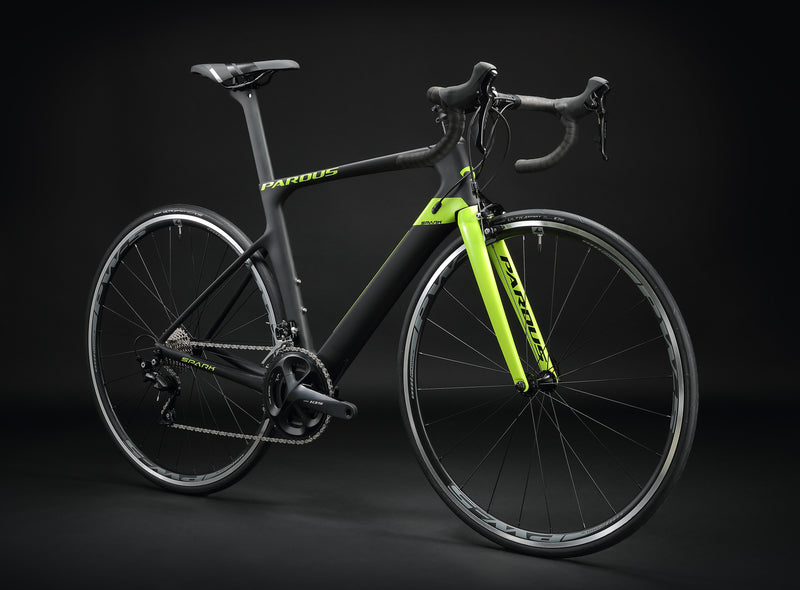

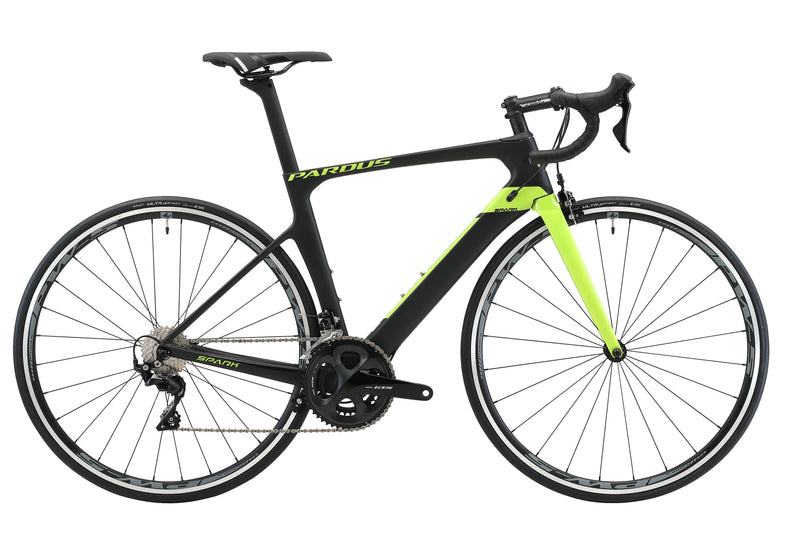

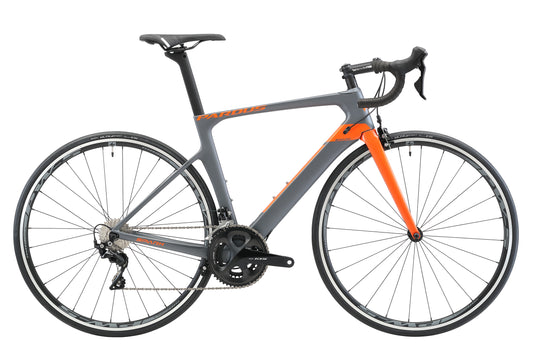

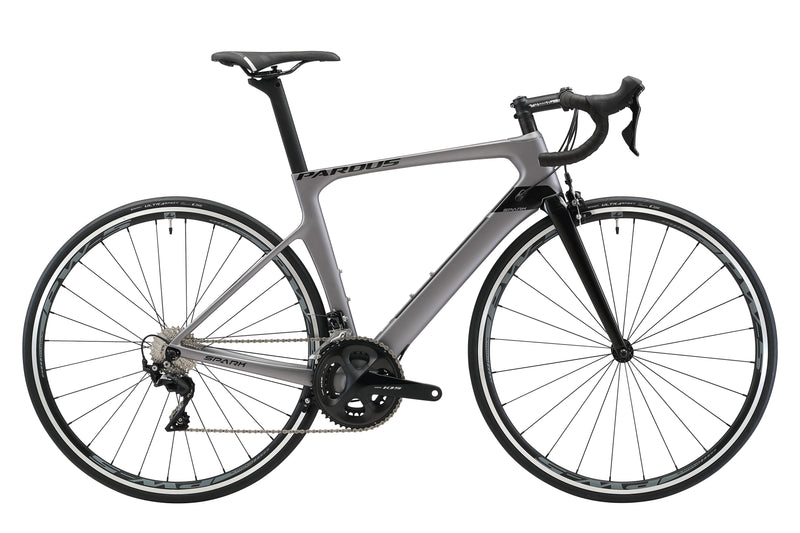

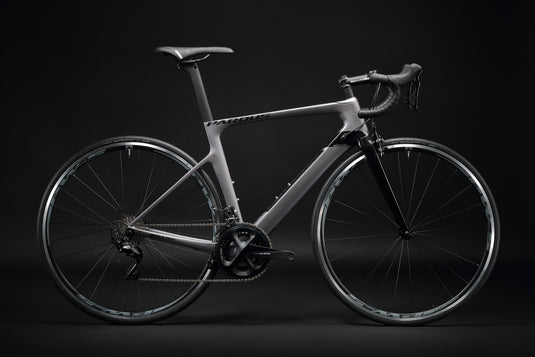

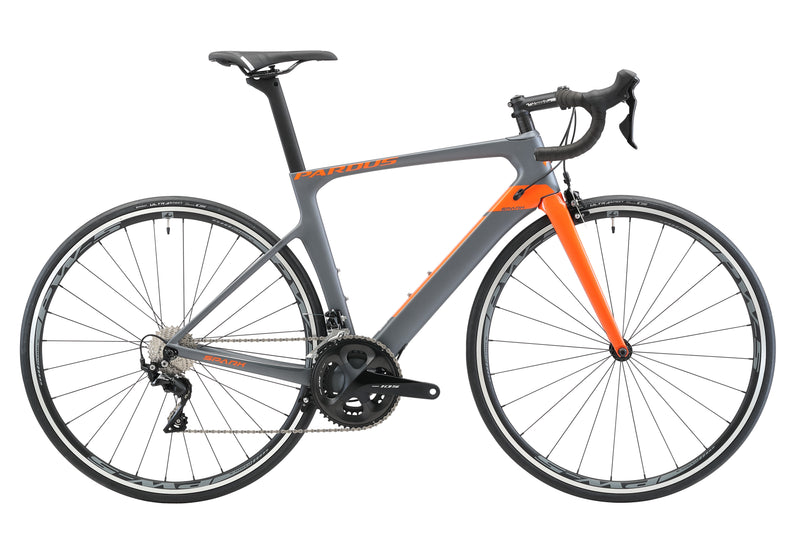

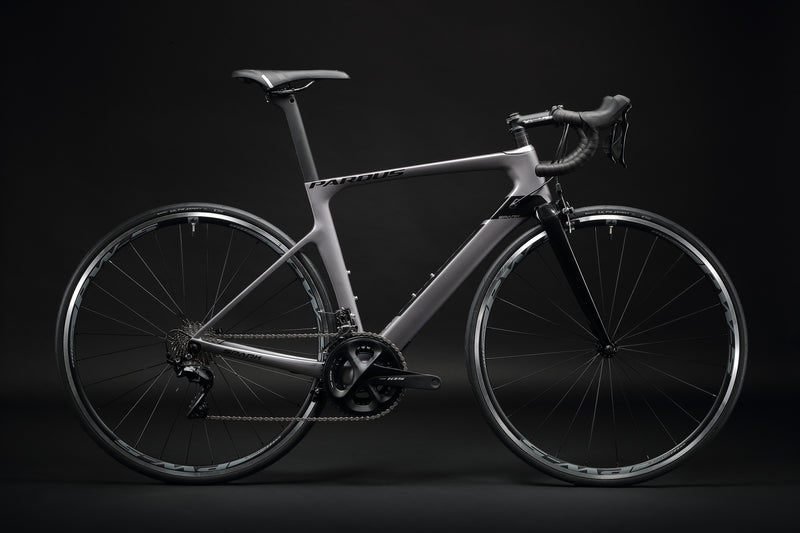

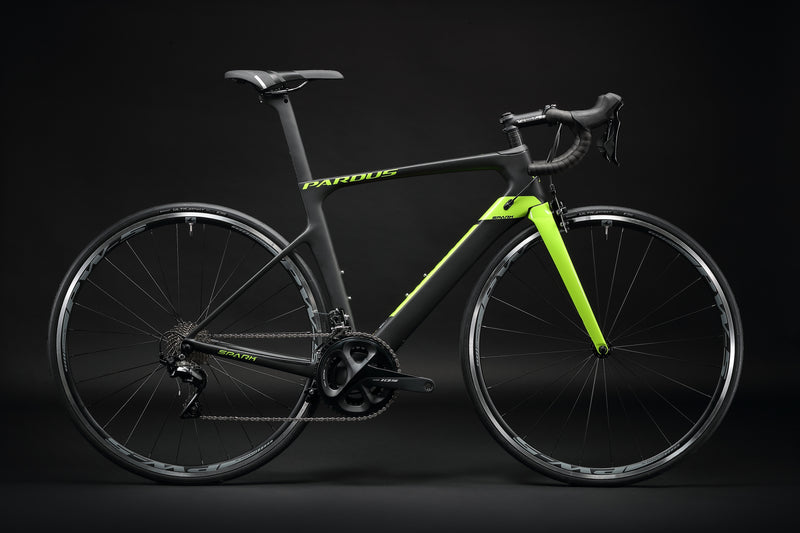

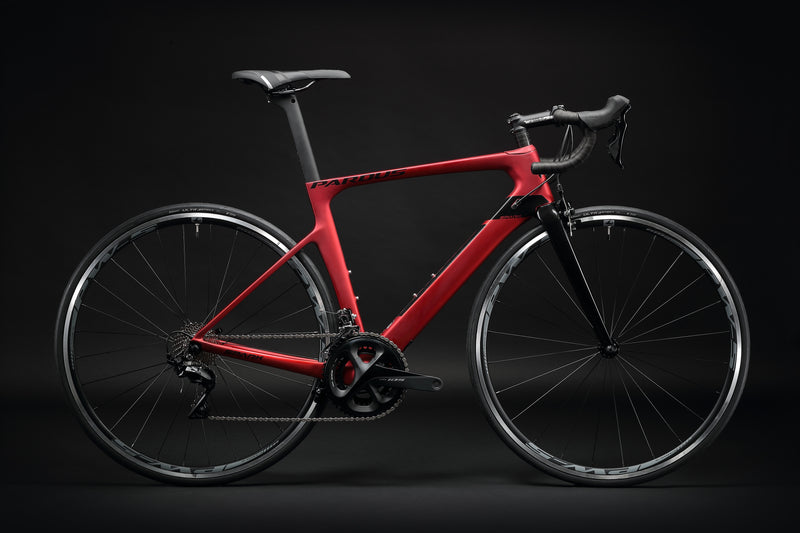

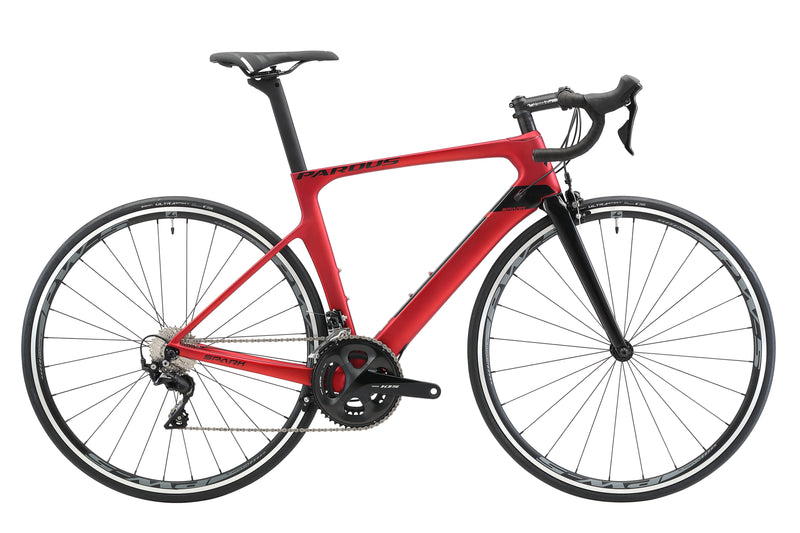

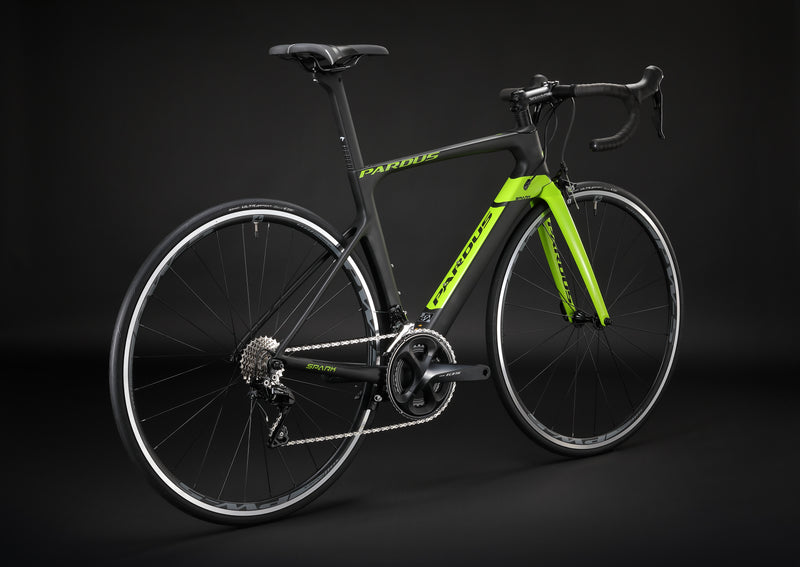

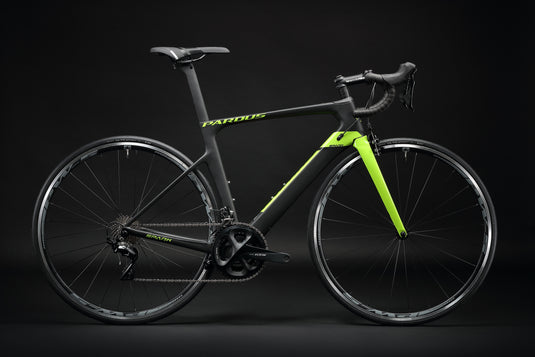

Pardus Spark Rim Brake 105 Carbon Road Bike

  • Sale
  • Dhs. 4,999.00
  • Regular price Dhs. 6,300.00
Tax included. Shipping calculated at checkout.

Spark is an aerodynamics series road bike, it has a small stack that could move the upper body center of gravity forward and get better control. S and XS sizes have a smaller headtube angle and bigger fork offset which will bring a better trail. The BB drop of Spark is 68mm it brings good cornering stability  The geometry design of Spark makes sure the big size and small size all have cornering stability flexibility.

Spark geometry is not so aggressive, it is more friendly than Spark EVO, different sizes have different headtube angles, Seatpost has 0°and 25°offset option.


  • Frame: SPARK HS-EPS Carbon,
  • Direct Mount Rim Brake,130×5mm Quick Release
  • Fork: SPARK, HS-HPT Carbon, Rim Brake,100×5mm Quick Release
  • Front-wheel: PARDUS PW5, Aluminum, Tubeless-Ready, 23mm rim width,27mm rim depth,100×5mm Quick Release
  • Rear-wheel: PARDUS PW3, Aluminum, Tubeless-Ready,23mm rim width,27mm rim depth,shimano11-speed freehub,130×5mm Quick Release
  • Shifter: Shimano 105 R7000,11 speed
  • Front derailleur:Shimano 105 R7000,braze-on
  • Rear derailleur: Shimano 105 R7000-SS,30T MAX

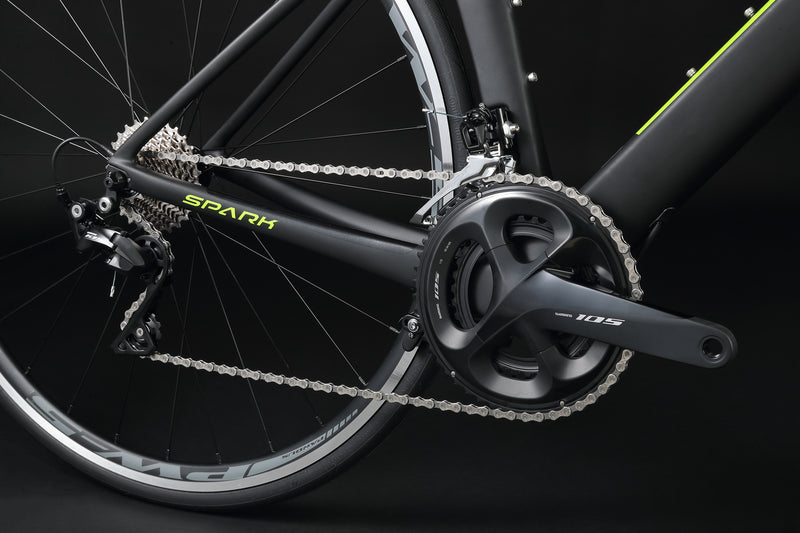

  • Crank: Shimano 105 R7000,50-34T
  • Cassette: Shimano 105 R7000,11-28T,11 speed
  • Chain: KMC X11
  • Bottom Bracket: Shimano SM-BB71-41B, Press Fit Type
  • Brake: Shimano 105 Direct Mount R7010F/R7010R
  • Stem: Pardus AL6061 T6 3D forged and CNC -7°
  • Saddle: Selle Italia X1 FLOW

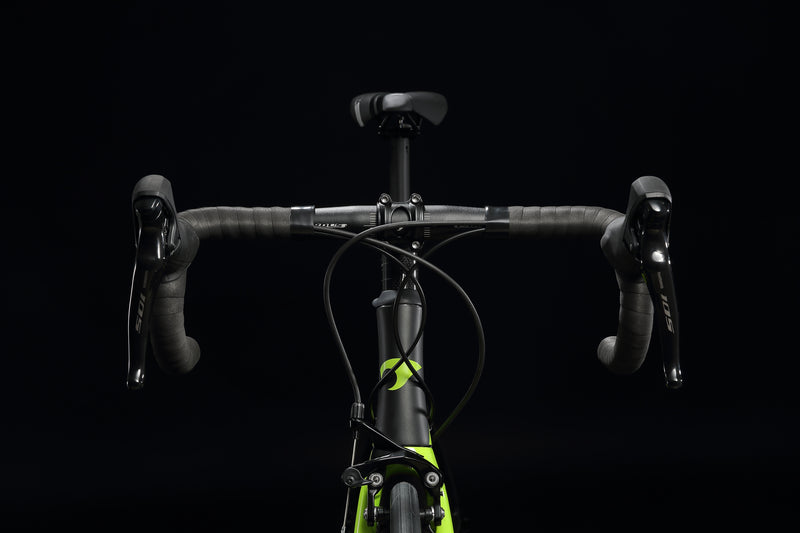

  • Handlebars: PARDUS AL6061T6 double-butted,75mm reach,120mm drop
  • Seat Post: PARDUS SPARK,HS-EPS Carbon,-20mm/0mm offset,350mm,Di2-compatible
  • Pedal: normal alloy pedal include
  • Weight:7.9kg in the M size

Size Chart:

  • XS: 155-165m
  • S: 162-172cm
  • M: 168-178cm
  • L: 173-183cm
  • XL:178-190cm

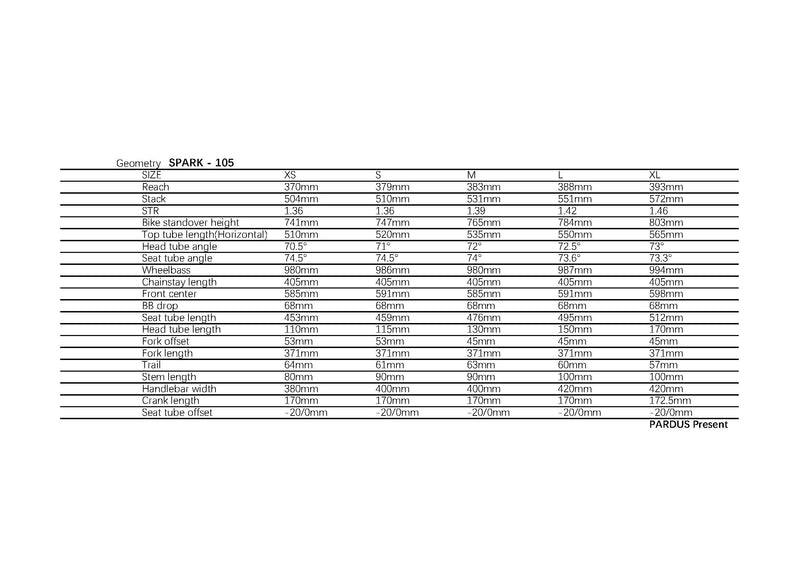

Geometry SPARK - 105
Reach   370mm 379mm 383mm 388mm 393mm
Stack   504mm 510mm 531mm 551mm 572mm
STR   1.36 1.36 1.39 1.42 1.46
Bike standover height 741mm 747mm 765mm 784mm 803mm
Top tube length(Horizontal) 510mm 520mm 535mm 550mm 565mm
Head tube angle 70.5° 71° 72° 72.5° 73°
Seat tube angle 74.5° 74.5° 74° 73.6° 73.3°
Wheelbase 980mm 986mm 980mm 987mm 994mm
Chainstay length 405mm 405mm 405mm 405mm 405mm
Front centre 585mm 591mm 585mm 591mm 598mm
BB drop 68mm 68mm 68mm 68mm 68mm
Seat tube length 453mm 459mm 476mm 495mm 512mm
Head tube length 110mm 115mm 130mm 150mm 170mm
Fork offset 53mm 53mm 45mm 45mm 45mm
Fork length 371mm 371mm 371mm 371mm 371mm
Trail   64mm 61mm 63mm 60mm 57mm
Stem length 80mm 90mm 90mm 100mm 100mm
Handlebar width 380mm 400mm 400mm 420mm 420mm
Crank length 170mm 170mm 170mm 170mm 172.5mm
Seat tube offset -20/0mm -20/0mm -20/0mm -20/0mm -20/0mm
