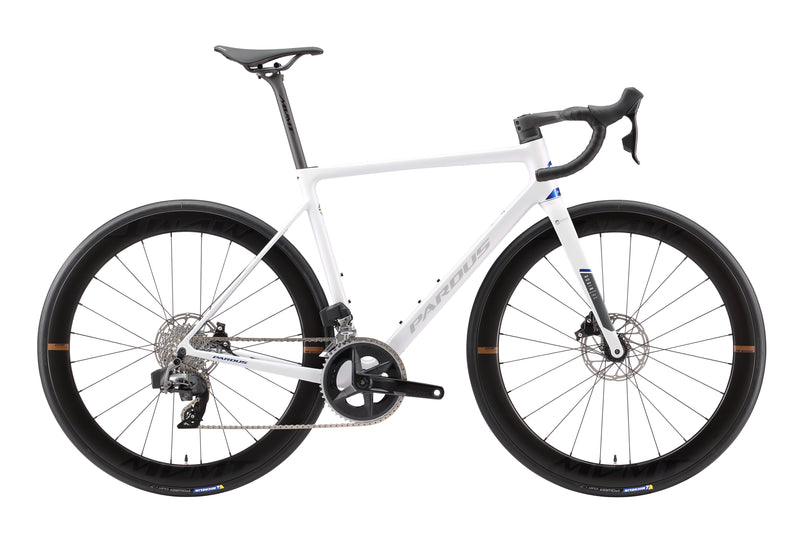

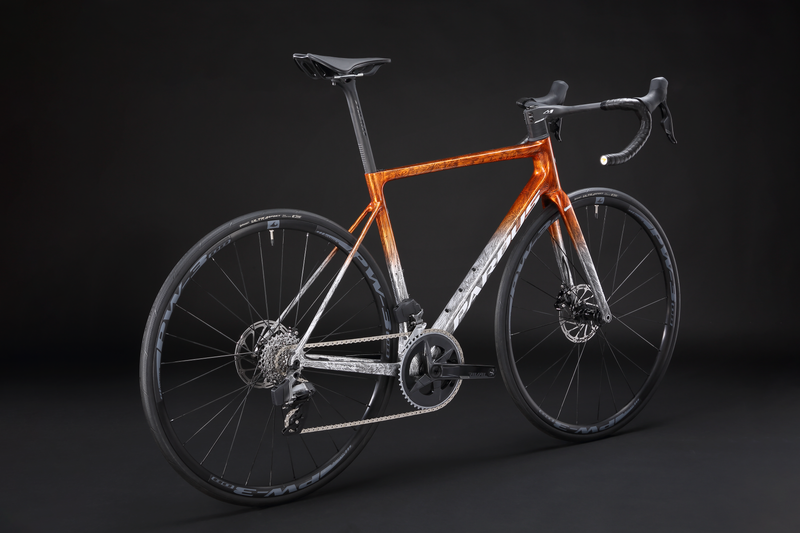

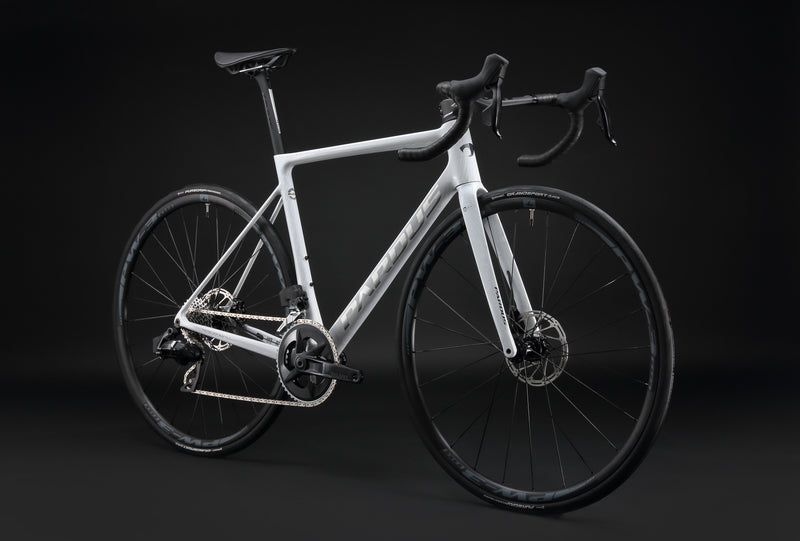

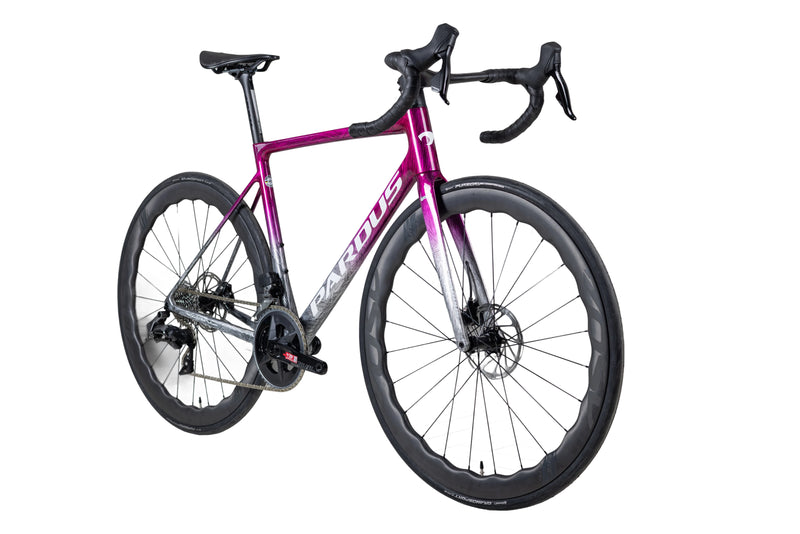

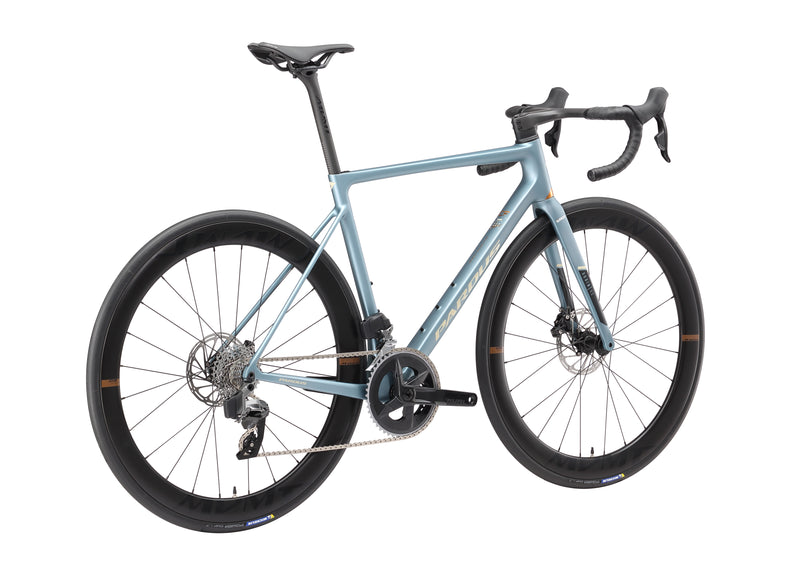

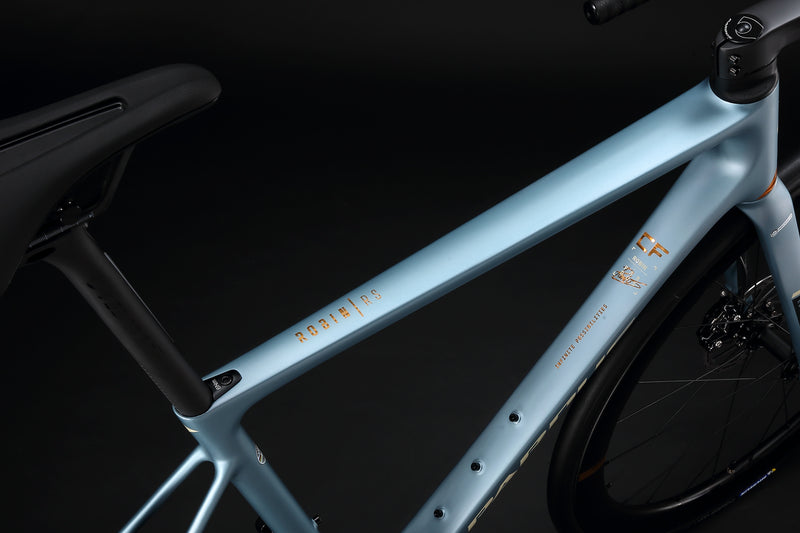

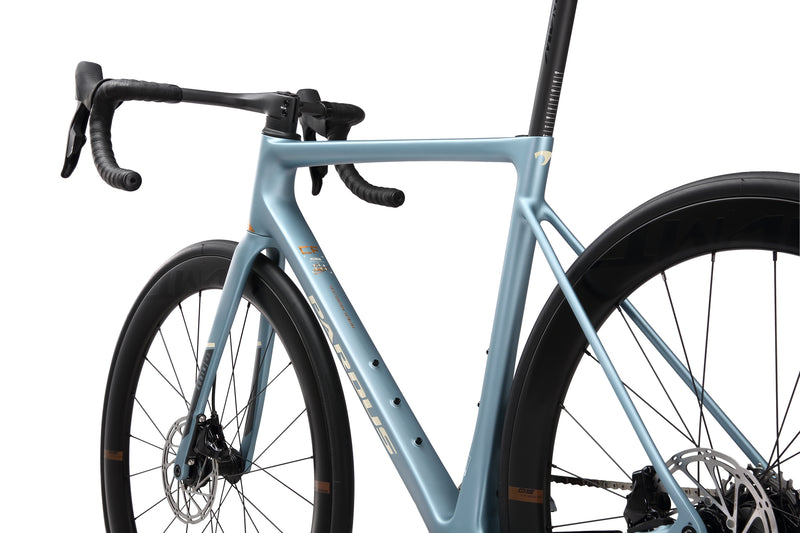

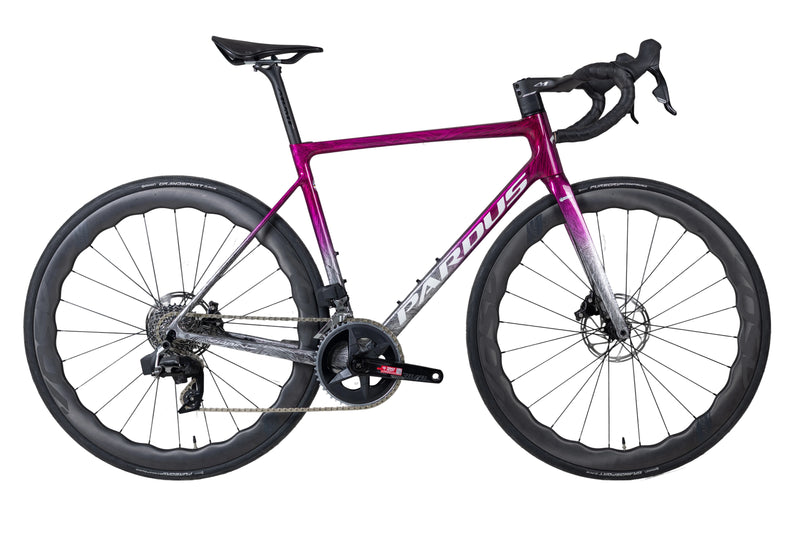

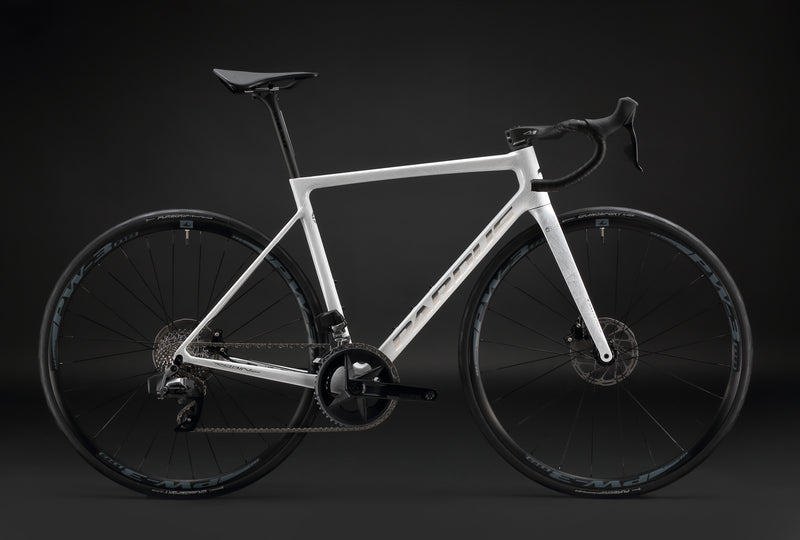

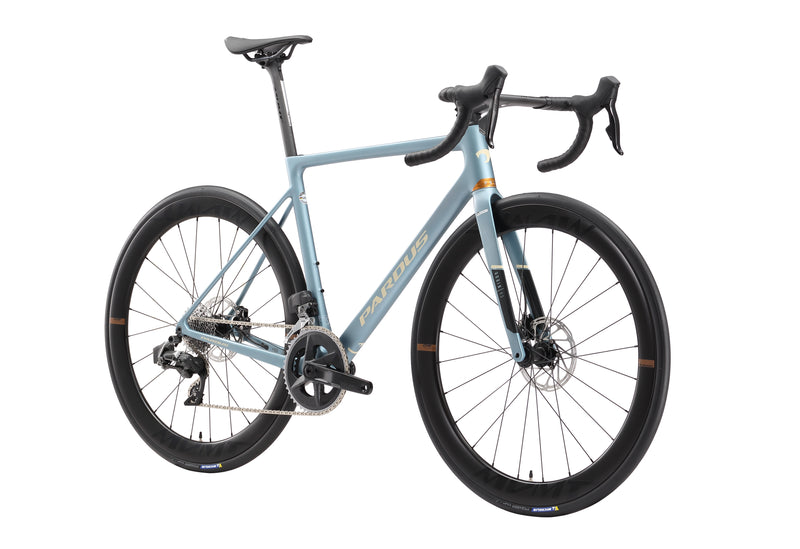

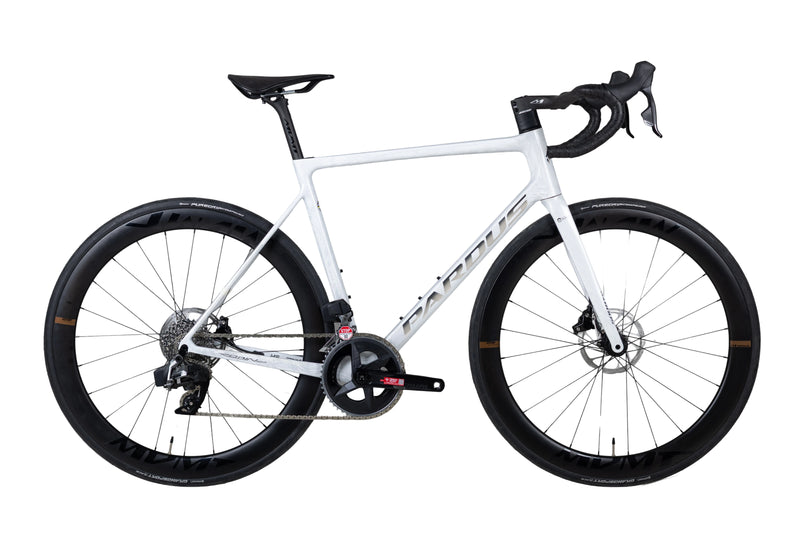

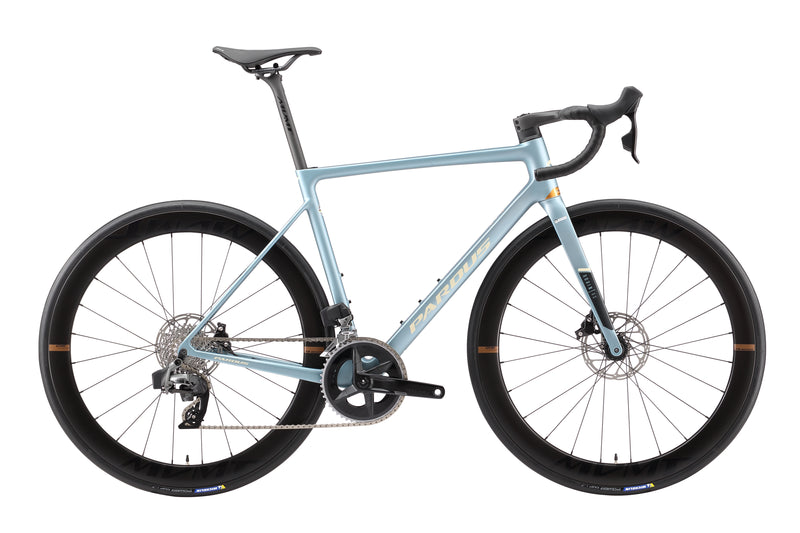

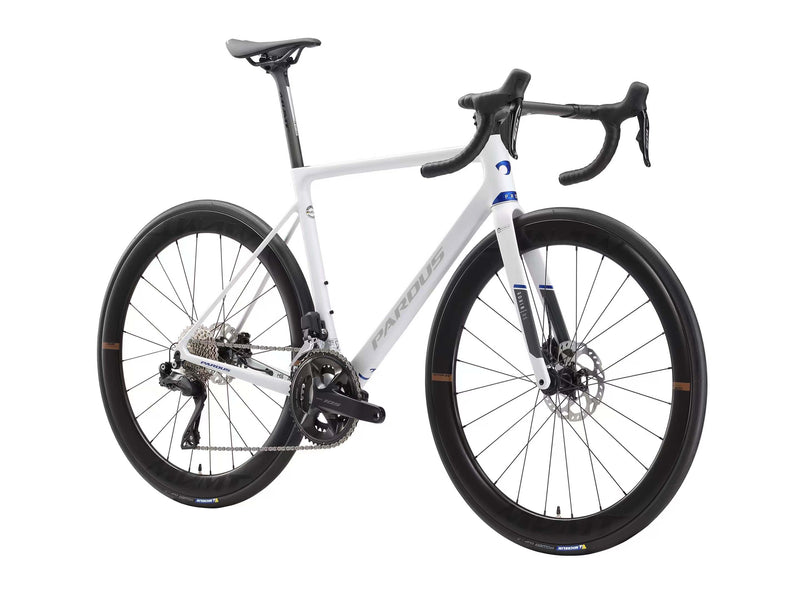

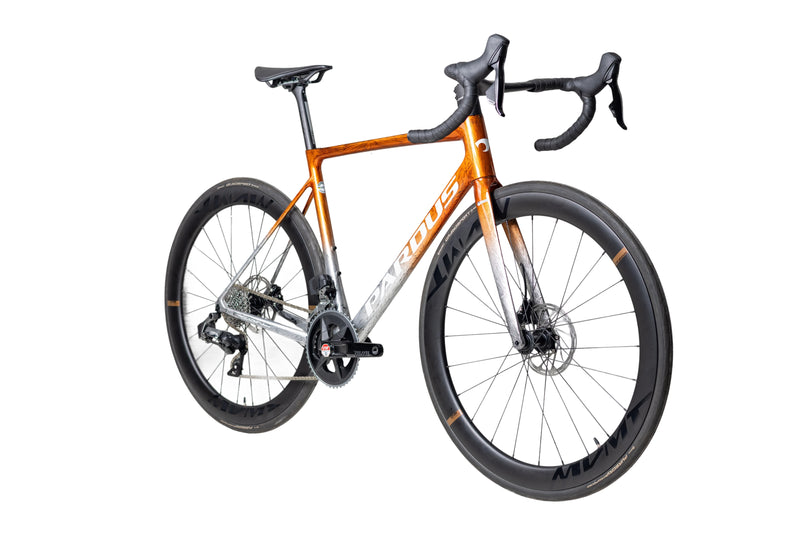

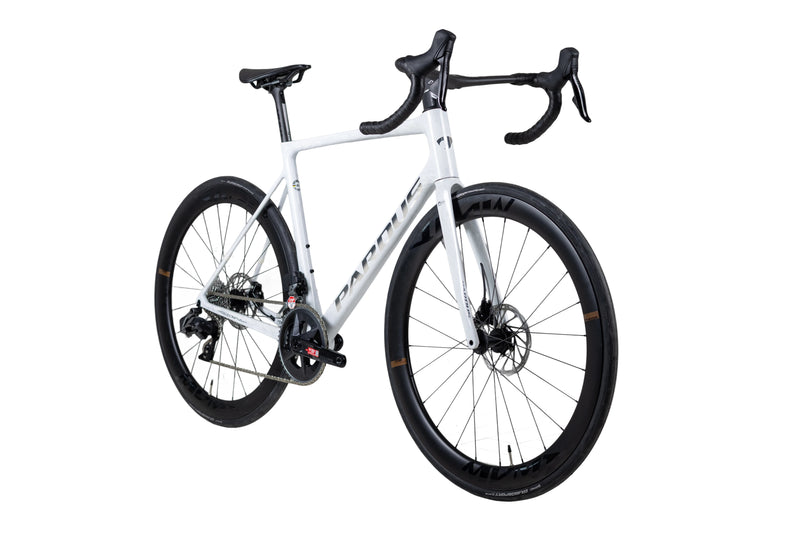

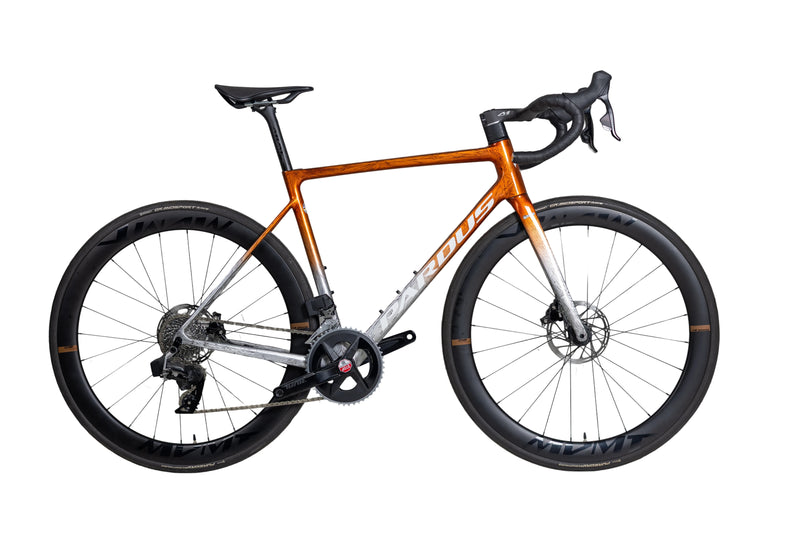

ROBIN RS is a second-tier integrated road bike in the ROBIN series, with remarkable pedaling rigidity and lightweight performance, and integrated fully hidden internal cable routing, resembling the flagship ROBIN EVO in appearance.

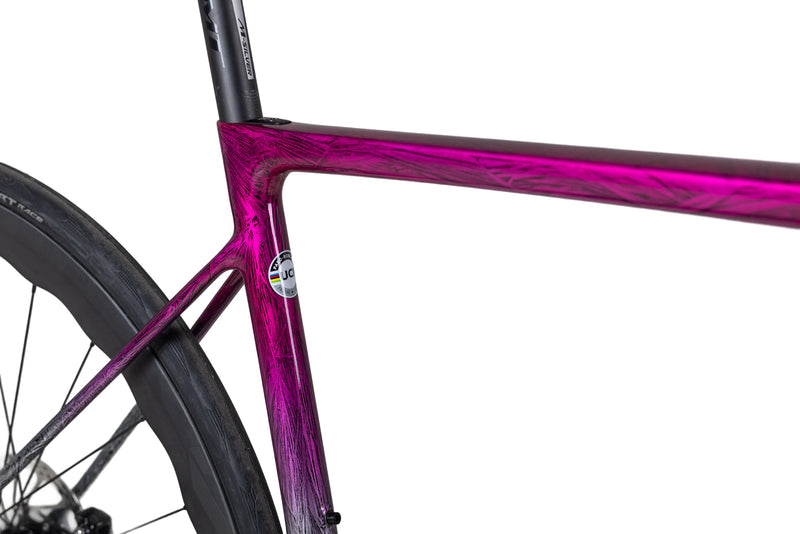

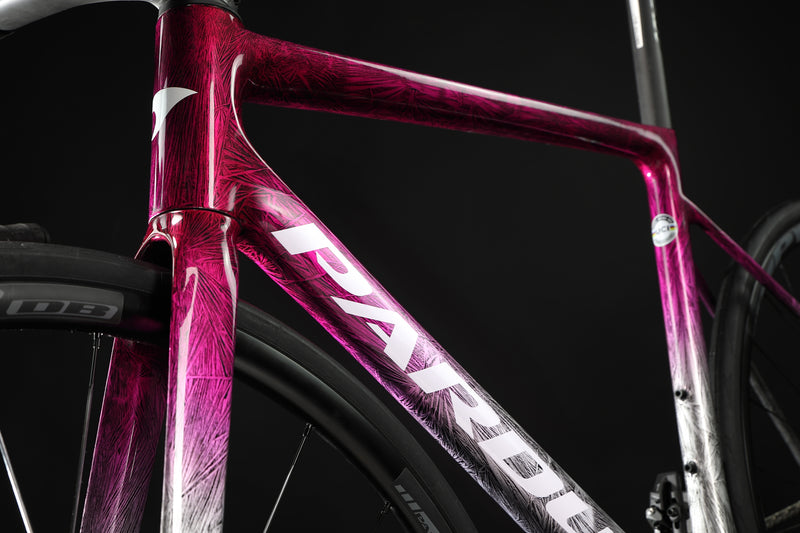

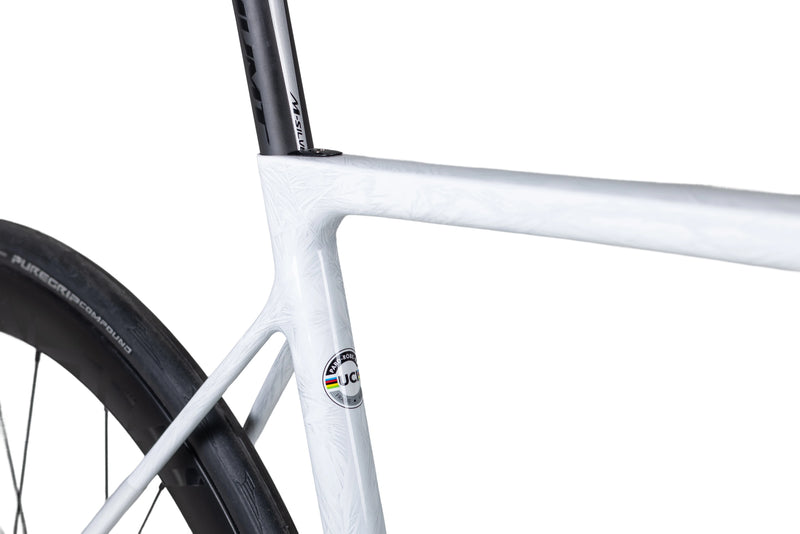

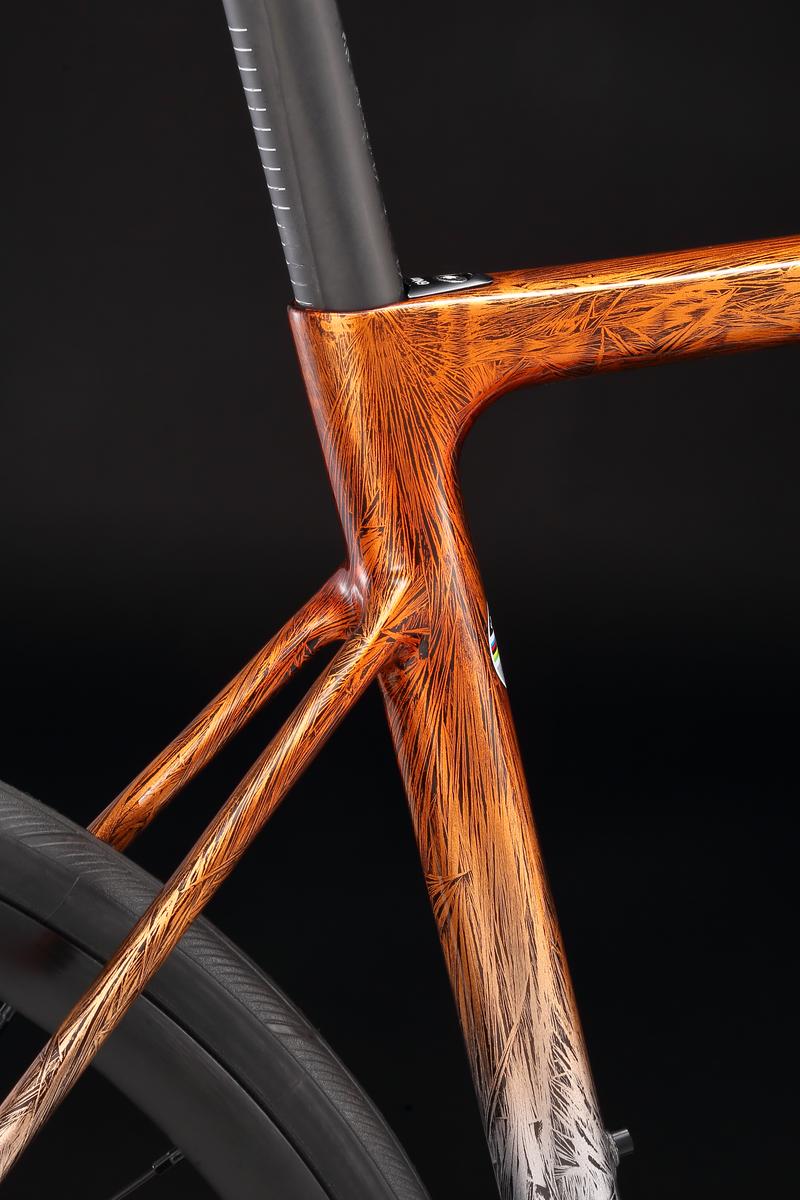

Equally impressive, the M-sized frame of the ROBIN RS weighs 860g. It uses PARDUS's second-highest HS-grade carbon fiber material and EPS+latex disappearing mold forming technology with accurate carbon cloth cutting and stacking.

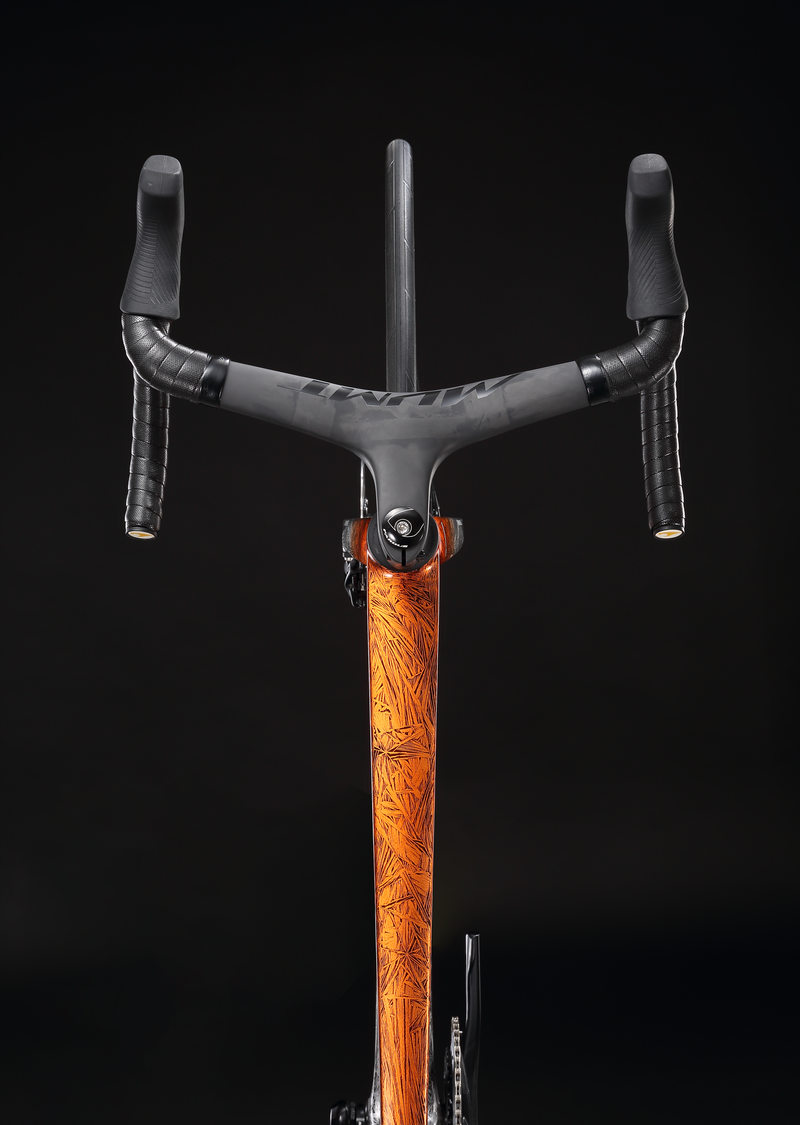

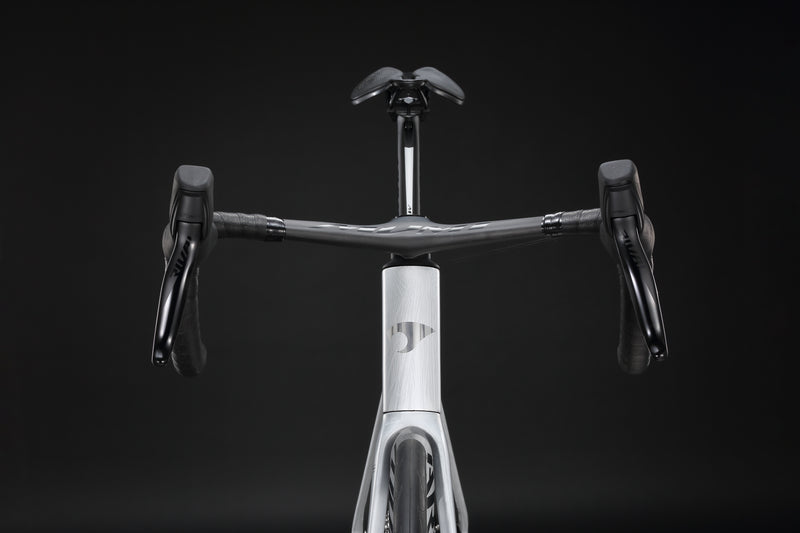

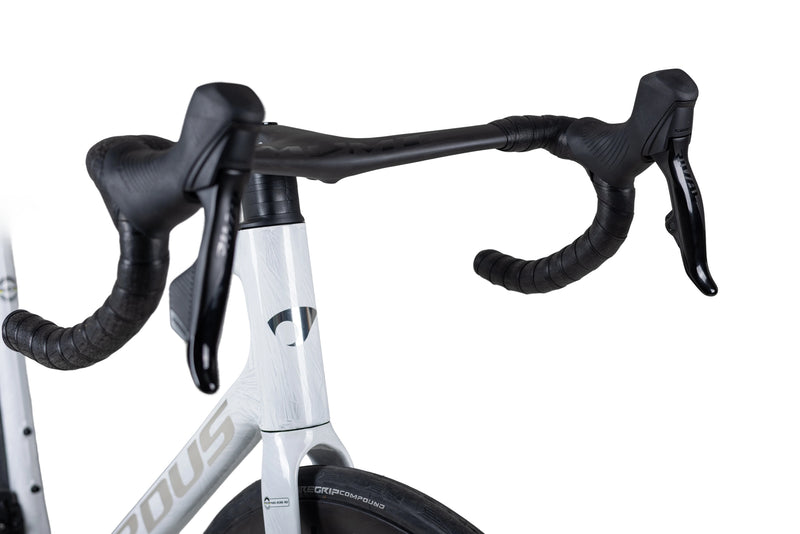

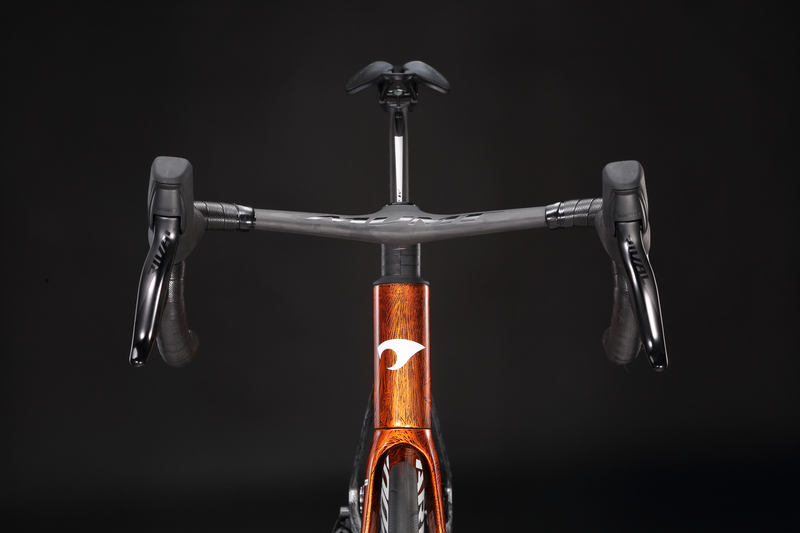

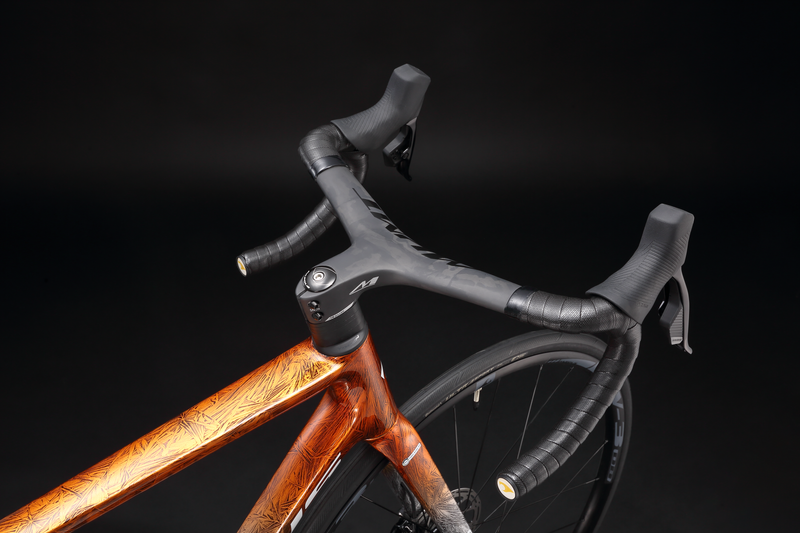

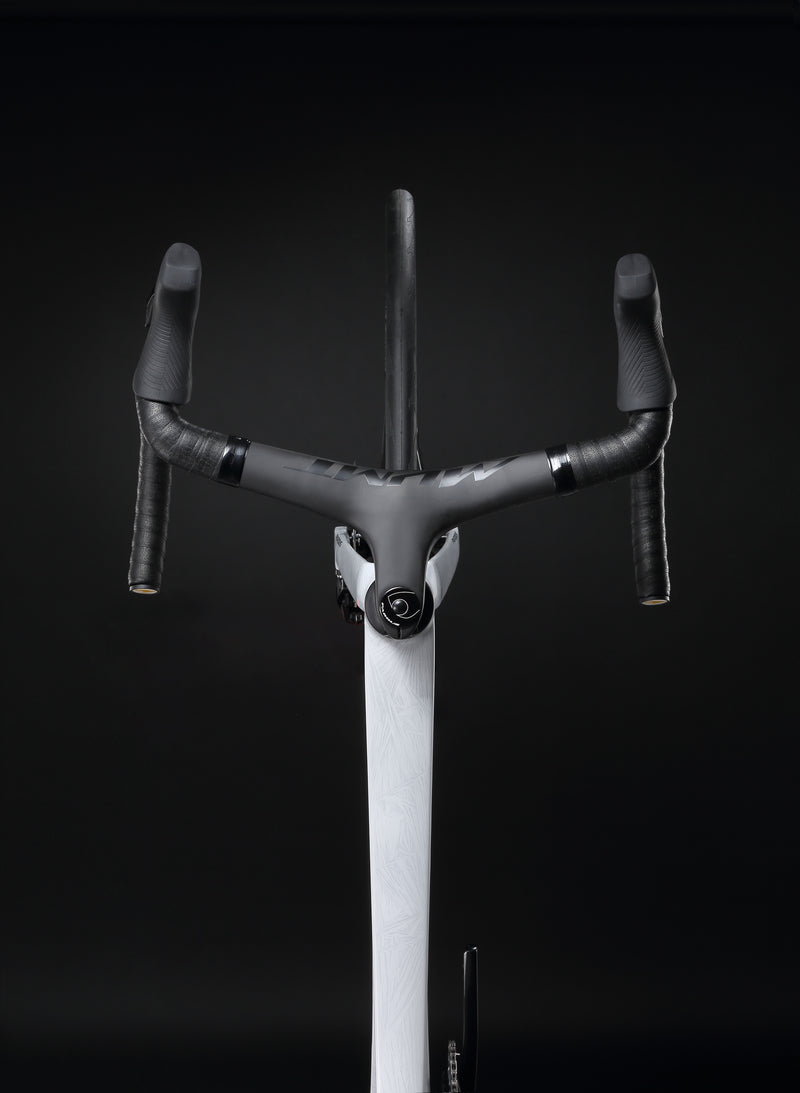

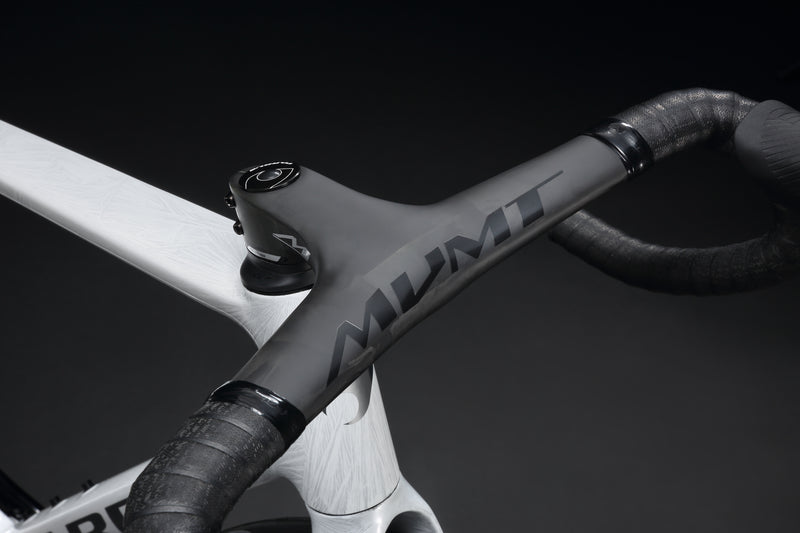

Pioneer Aerodynamics: The MTMT M-SILVER B-Type integrated handlebar is the result of PARDUS's deep cultivation of the field vehicle experiment project, with an upturned and forward-extending shape that minimizes wind resistance. It weighs 295g with a length of 400mm.
Comprehensive Geometry: The pipe design and frame geometry are identical to the flagship ROBIN EVO, with a widely compatible geometry suitable for intense race tracks and ordinary enthusiasts. Each size has been specifically adjusted for riders of different heights.
Sleek Integration with Full Hidden Internal Wiring: With a sleek and refined appearance, the full hidden internal wiring features TOKEN's Cable Box system.
Specification
- Frame: ROBIN RS, HS-EPS+ Carbon,12×142mm thru-axle, Flat Mount Disc
- Fork: ROBIN RS, HS-HPT Carbon,12×100mm thru-axle, Flat Mount Disc
-
Shifter: SRAM Rival eTap AXS 12-speed
- Front derailleur:SRAM Rival eTap AXS D1,braze-on,2×12 speed
- Rear derailleur: SRAM Rival eTap AXS D1 12 speed

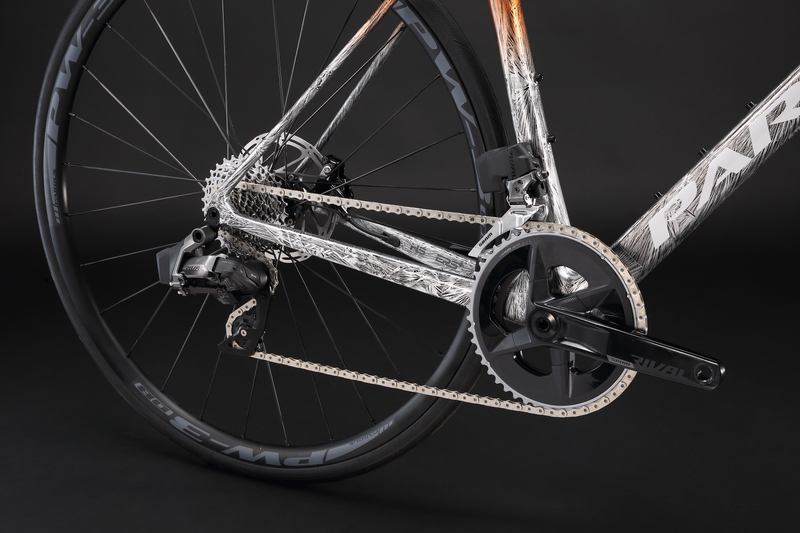

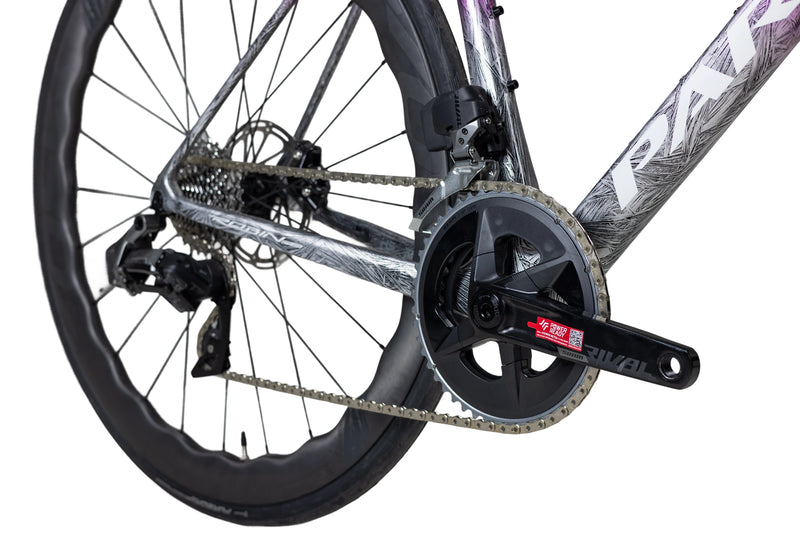

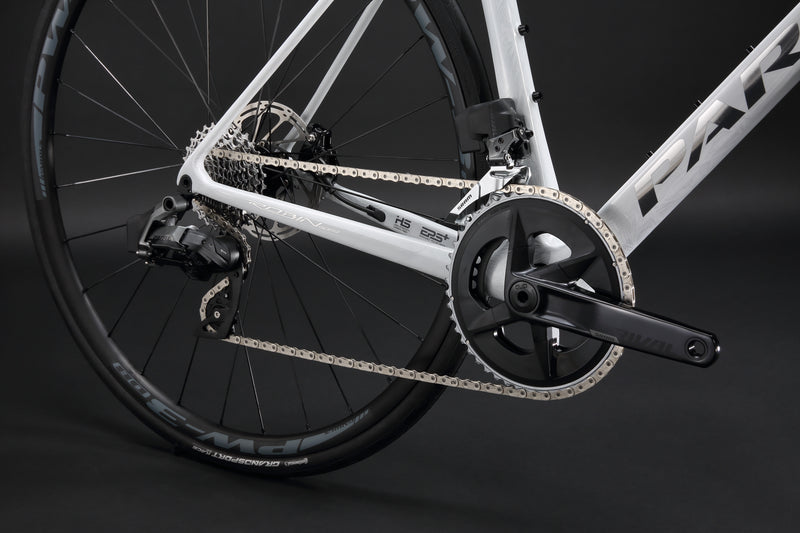

- Crank: SRAM Rival eTap AXS D1,48-35T
- Cassette: SRAM RIVAL XG-1270,10-30T, 12-speed
- Chain: SRAM RIVAL D1,12speed, Power Lock
- Bottom Bracket: SRAM BB DUB PF30 ROAD68

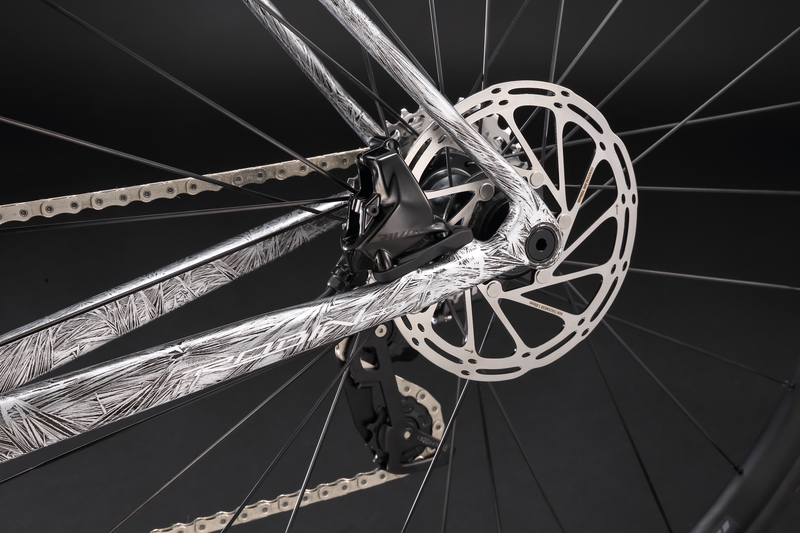

- Brake: SRAM RIVAL e-Tap AXS D1 Hydraulic Disc Brake
- Brake Rotor: SRAM RT-Centerline-A2,Center Lock,F & R160mm

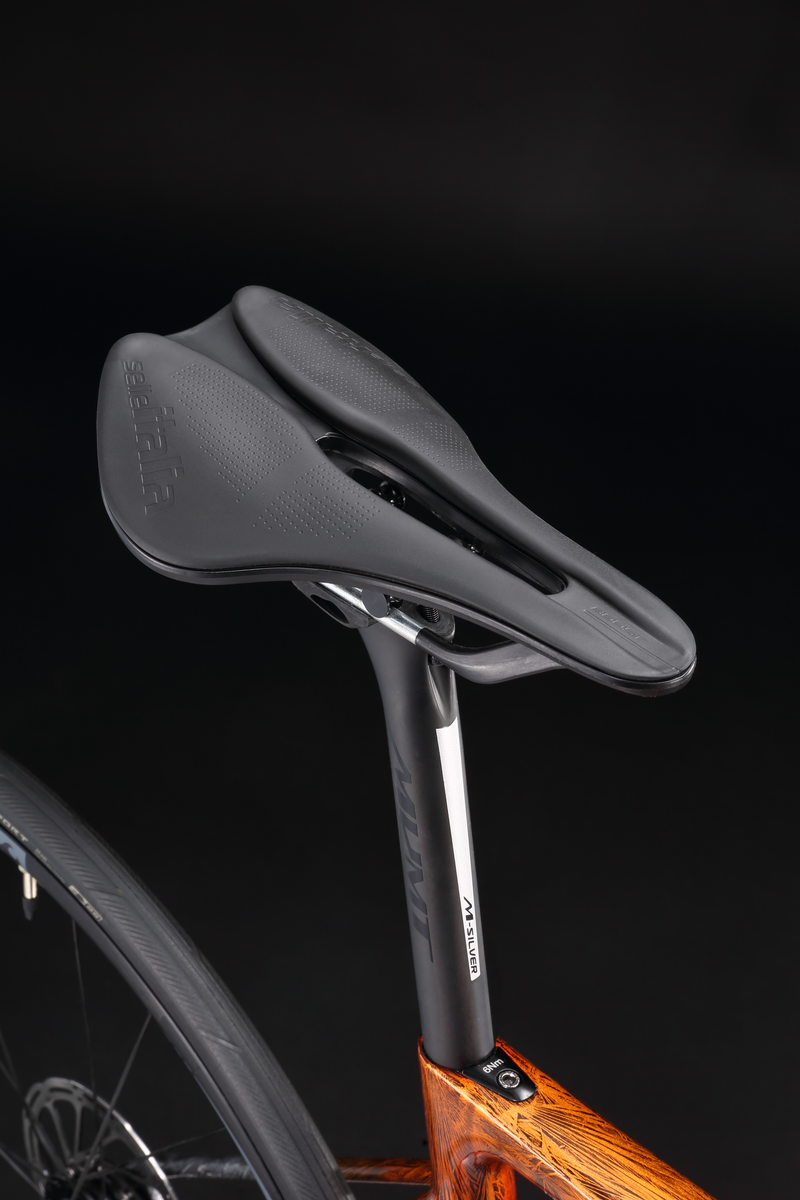

- Saddle: Selle Italia MODEL-X
- Wheels: PARDUS PW3 DB, Aluminum, Center Lock, Tubeless Ready,25mm rim width,27mm rim depth, front 100×12mm; Rear SRAM XDR freehub,142×12mm thru-axle
- Tire: Continental Grand Sport Race 700X25C
- Handlebar: MVMT M-SILVER B-TYPE Carbon, Integrated Handlebar,85mm reach,130mm drop
- Seat Post: MVMT M-SILVER, Carbon,-15mm or 0mm offset,350mmX27.2mm
- Weight: 7.9 kg in S size
Size Chart:
- XS: 156-167 cm
- S: 164-175 cm
- M: 168-180 cm
- L: 178-188 cm
- XL: 185-195cm
ROBIN EVO - Geometry | |||||
SIZE | XS | S | M | L | XL |
Reach | 368mm | 378mm | 384mm | 388mm | 397mm |
Stack | 505mm | 527mm | 548mm | 565mm | 584mm |
STR | 1.37 | 1.40 | 1.43 | 1.46 | 1.47 |
Bike standover height | 737mm | 754mm | 775mm | 794mm | 807mm |
Top tube length(Horizontal) | 503mm | 524mm | 540mm | 555mm | 576mm |
Head tube angle | 71° | 72.5° | 73° | 73° | 73° |
Seat tube angle | 75° | 74.5° | 74° | 73.5° | 73° |
Wheelbase | 968mm | 977mm | 980mm | 990mm | 1005mm |
Chainstay length | 410mm | 410mm | 410mm | 410mm | 410mm |
Front center | 569mm | 578mm | 581mm | 590mm | 605mm |
BB drop | 74mm | 75mm | 70mm | 70mm | 70mm |
Seat tube length | 471mm | 486mm | 503mm | 522mm | 533mm |
Head tube length | 100mm | 120mm | 140mm | 160mm | 180mm |
Fork offset | 50mm | 50mm | 45mm | 45mm | 45mm |
Fork length | 371mm | 371mm | 371mm | 371mm | 371mm |
Trail | 61mm | 55mm | 57mm | 57mm | 57mm |
Stem length | 100mm | 100mm | 110mm | 110mm | 120mm |
Handlebar width | 380mm | 380mm | 400mm | 420mm | 420mm |
Crank length | 165mm | 170mm | 170mm | 172.5mm | 172.5mm |
Seat tube offset | -15mm | -15mm | -15mm | 0mm | 0mm |
