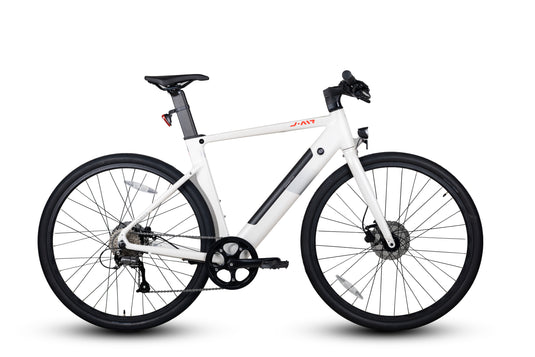

JAVA Frenetica M080 9S Hybrid E-bike

  • Sale
  • Regular price Dhs. 4,900.00
Tax included. Shipping calculated at checkout.


JAVA Frenetica is a lightweight and capable hybrid electric bike that’s designed for adventure on pavement and light trails. It has an intuitive and natural feeling pedal assist system that makes exploring more of your city and your surroundings more fun and cruising up hills a breeze. Plus, stiff wheels and wide tires give you confidence on varied terrain.

  Max Load Weight
110kg
Frame System Bike Frame Aluminum alloy   frame
Fork
Aluminum alloy  fork
Shock NA
Size
48CM/51CM/54CM

Ride Components HandleBar
AL 6061-T6 butted 680mm
Stem
3D forged AL6061-T6 φ31.8*φ28.6*60mm,7°
Shift System Shifters
Shimano SL-M2010-9
Front Derailleur NA
Rear Derailleur Shimano RD-M370
Pedaling Resistance 9-speed

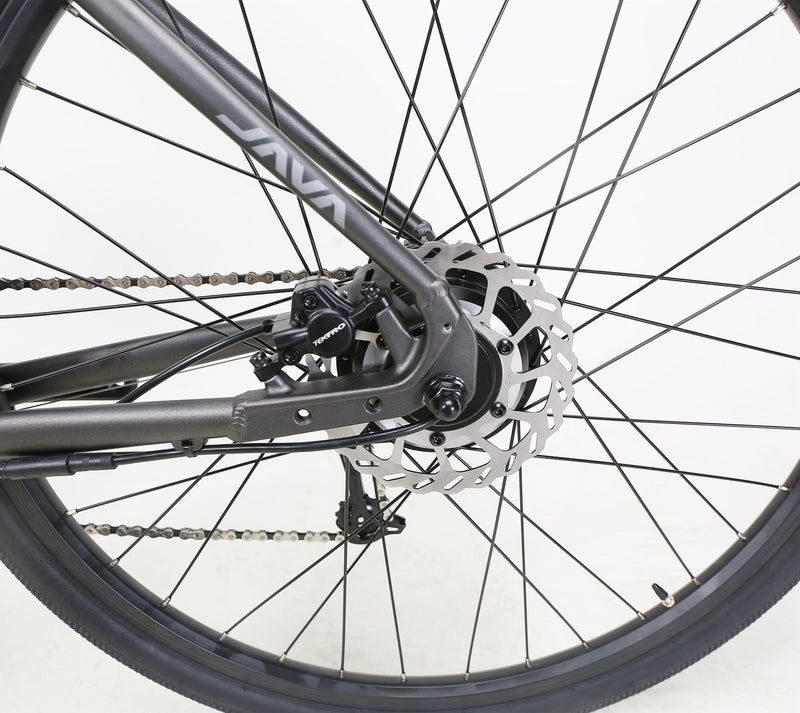

Brake System Brake Hydraulic disc brake
Brakes Levers
TEKTRO HD-M275
Brakes
TEKTRO HD-M275
Brake Disc
Hydraulic disc,160mm
Hybrid Cycling Tech
Motor
Mivice Rear drive motor M080 DC36V350W
Motor Torque
Maximum 40Nm
Max Speed km/h 32km/h
Power Assist
Torque Sensor
Display
Left Control GO, Frame Integrated LED Display
Battery System Capacity EnergyPak Smart 360Wh, 36V, 10AH
Cells Samsung 21700 5000mah
Charger EnergyPak Smart 2A Charger
Battery Life 500 Cycles
Recharge Time 5 Hours
Max Range 60km
Drivetrain Chain Ring SP60 BCD 130 48T
Cassette 11-32T
Chain KMC e9 Sport.NP/NP, e-bike optimized
Crankarm Mivice Aluminum alloy Crankarm 170mm
Pedals Aluminum alloy with sealed bearing
Rims 700C Aluminum alloy rim, profile 21mm
Tires CHAOYANG 700*40C
Others Saddle Road Saddle with rear light
Seatpost Aluminum alloy post
Net Weight kg 17.5KG including Battery
Package size cm L1900mm*W420mm*H950mm
Gross Weight kg 21KG including Battery
Frame size number 480 510 540
Body height in mm ≤174 174-182 ≥182
B-Seat tube 480 510 540
A-Seat tube angle 73.5° 73.5° 73.5°
L-Head tube length 145 155 165
Q-Head angle 72.5° 72.5° 72.5°
N-Effective top tube 574.1 586.1 596.6
H-Bottom bracket drop 75 75 75
G-Chainstay length 430 430 430
F-Offset 45 45 45
W-Wheelbase 1032.2 1044.5 1055
C-Standover height 765.3 789.8 812.8
R-Frame reach 400.5 409.6 418.8
S-Frame stack 586.1 595.6 600.4
WHEEL SIZE 700C 700C 700C
