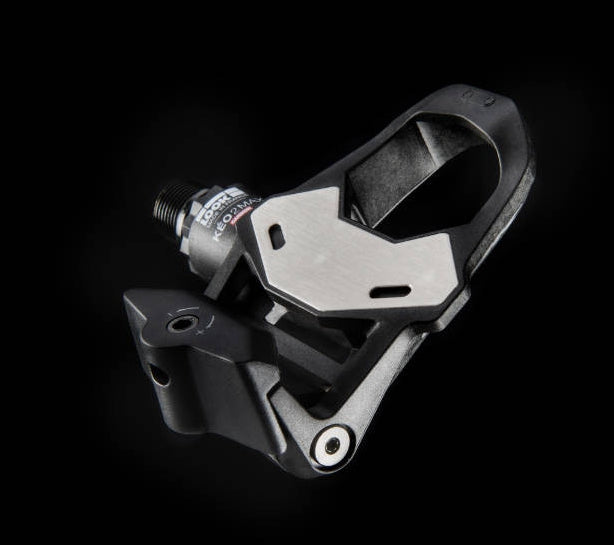

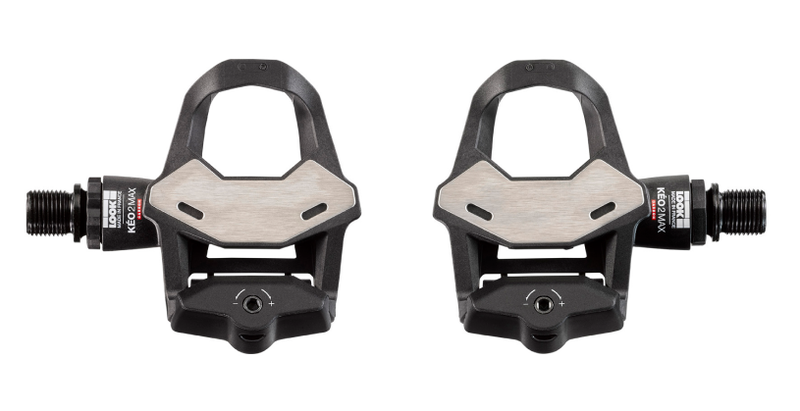

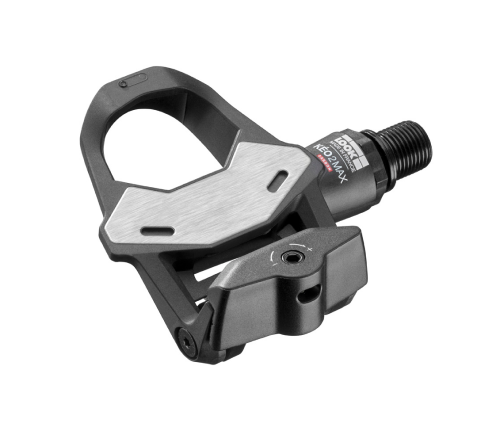

Ready for new adventures? Follow your dreams with the KEO 2 MAX CARBON pedal. With its 500 mm² contact area, it offer perfect power transfer from your legs to your bike. The carbon body ensures lightness and efficiency while the Chromoly+ axle offers robustness in all conditions. Install your pedal, adjust the tension, and you are ready to ride.
WHY YOU'LL LOVE IT?
THE "SIMPLE" PEDAL WITH THE CARBON BODY
- A pedal that weighs barely 125 grams
- A wide, stainless steel contact area for excellent stability thru the pedal stroke
- A carbon body combined with our renowned spring technology
TECHNICAL SPECIFICATIONS
SPINDLE
| Spindle material | Chromoly + |
|---|
BODY & PLATFORM
| Technology | Spring |
|---|---|
| Body material | Carbon |
| Platform material | Stainless steel |
| Platform area | 500 mm² |
| Platform width | 60 mm |
| Total stack height (pedal + cleat) | 17,3 mm (11 + 6.3 mm) |
| Q Factor | 53 mm |
RETENTION & CLEATS
| Retention | 8 to 12 |
|---|---|
| Cleats | KEO grip |
WEIGHT & ACCESSORIES
| Pedal | 125 g |
|---|---|
| Weight pair + cleats | 312 g |
