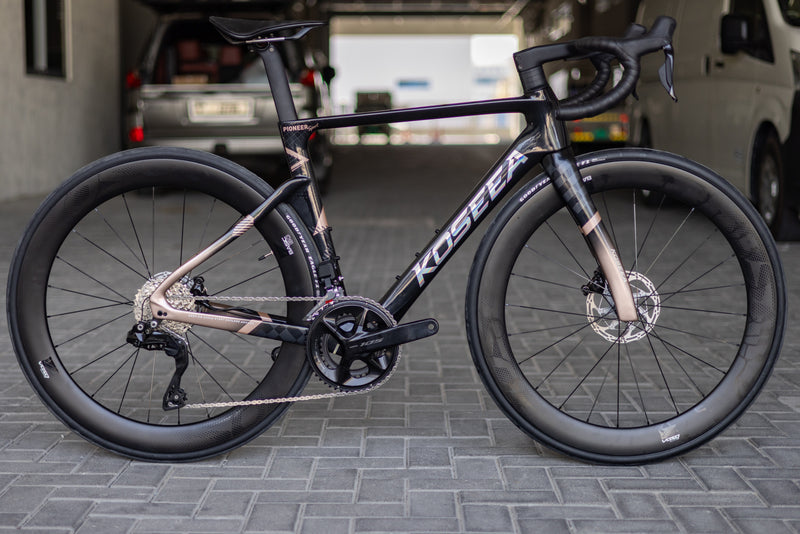

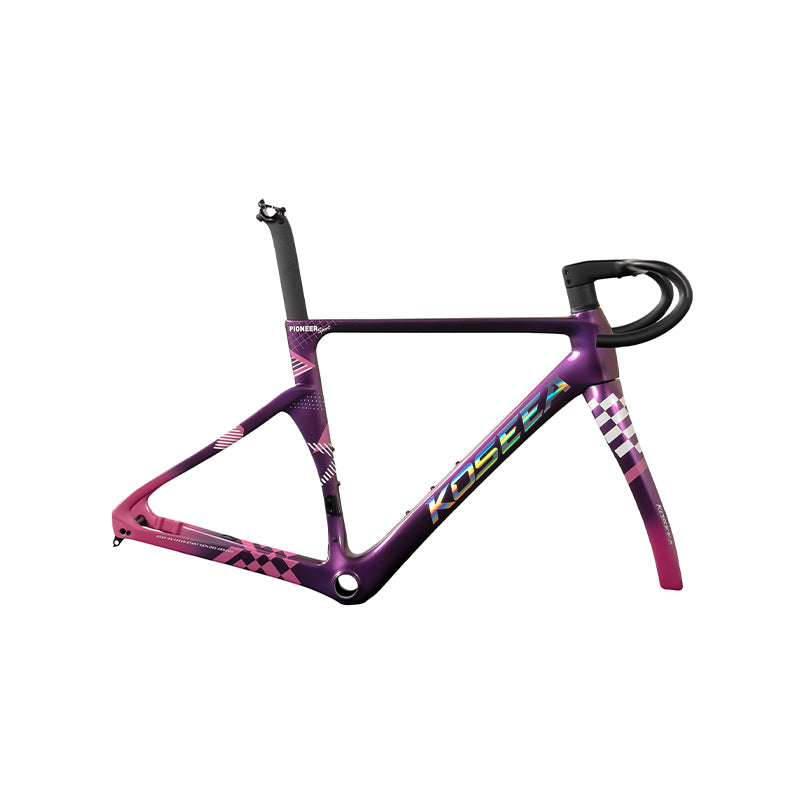

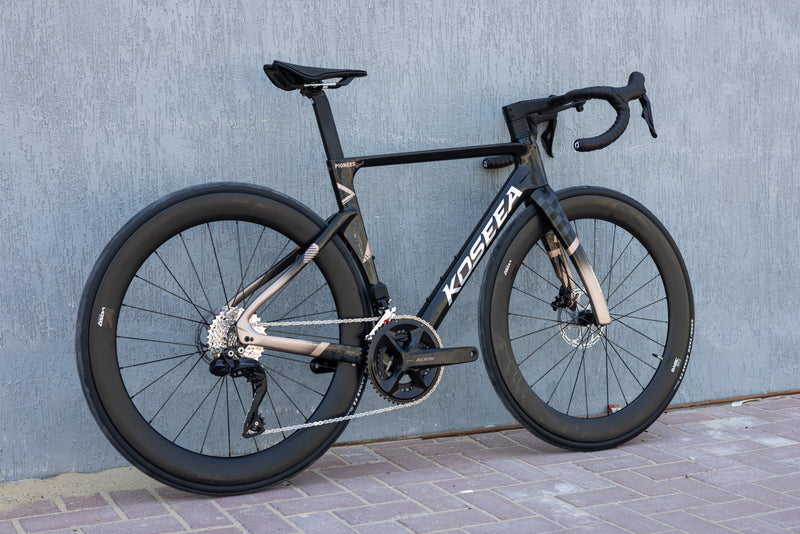

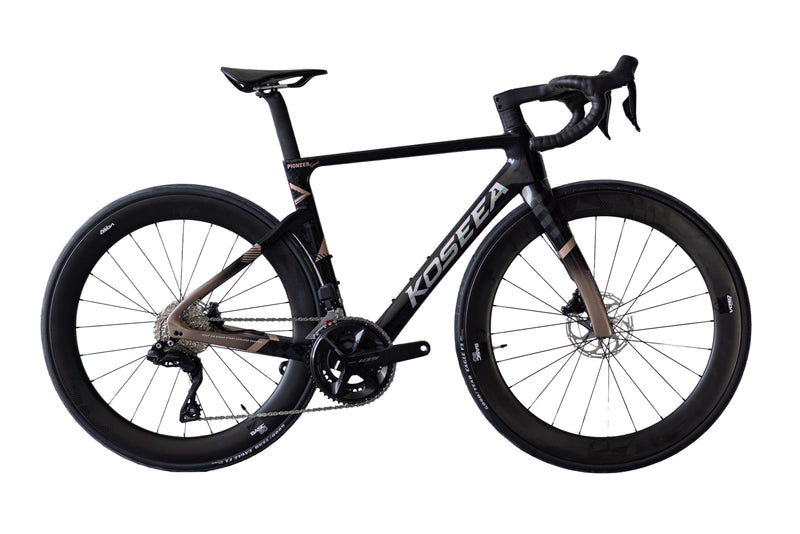

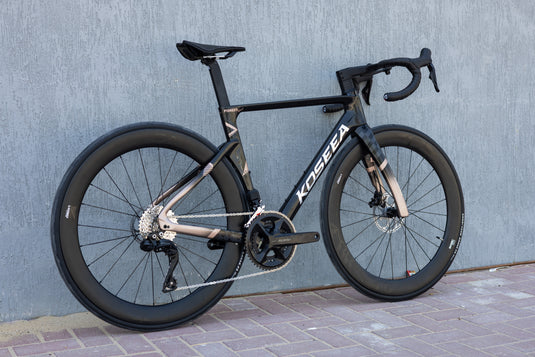

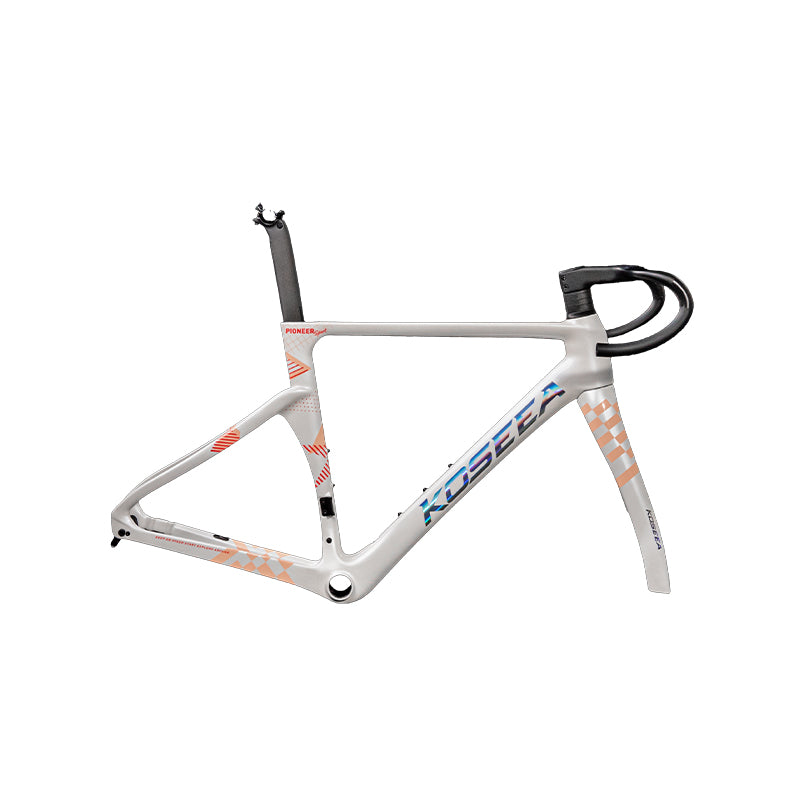

Unleash Elite Velocity — KOSEEA Pioneer Sport Carbon Aero Frameset.
Engineered for speed, stability, and aesthetic perfection, the KOSEEA Pioneer Sport represents the pinnacle of modern carbon fiber road racing engineering. With an aggressive aerodynamic silhouette that slices through head-winds and a multi-panel rigid carbon layup that maximizes power transfer, this frameset is built for competitive riders who refuse to compromise. Adorned with a breathtaking, artistically inspired premium finish, the Pioneer Sport transforms every ride into a moving piece of visual art.
Technical Highlights:
-

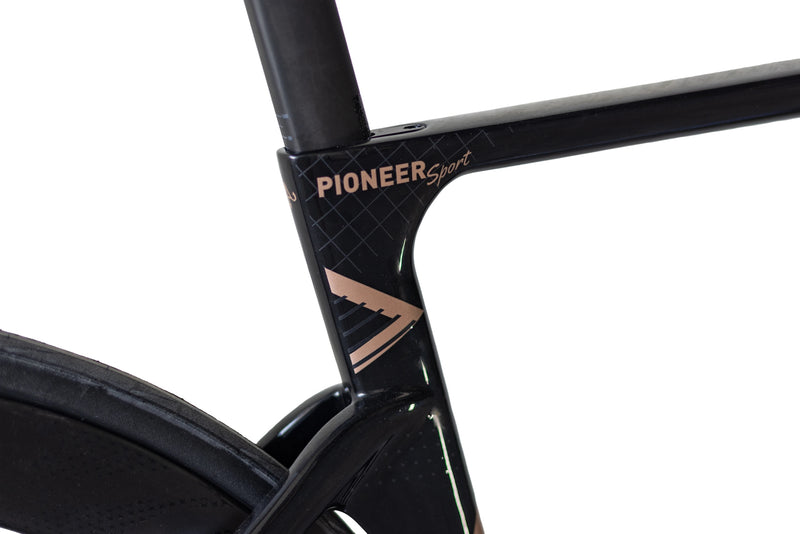

Pro-Tier Aero Carbon Construction: Advanced carbon fiber engineering ensures a featherweight profile matched with high torsional rigidity for responsive handling, snappy accelerations, and absolute high-speed confidence.
-
Fully Integrated Cockpit Architecture: Clean aesthetics meet wind-tunnel efficiency. Complete inner cable routing keeps brake and shifting lines hidden entirely from sight and wind drag.
-
Modern Disc Brake Optimization: Engineered specifically for flat-mount disc brakes, providing powerful, reliable, and modulated stopping power under any weather conditions.
-
7 Sizes for the Perfect Fit: From 44cm (XXS) up to 58cm (XL), the precise racing geometry is finely tuned across every frame size to ensure optimal comfort, lower aerodynamic posture, and balanced weight distribution.
-
Includes Carbon Integrated Handlebar: Comes equipped with the KOSEEA premium carbon integrated drop bar, featuring optimized reach and drop geometry for an ergonomic grip in all riding positions.

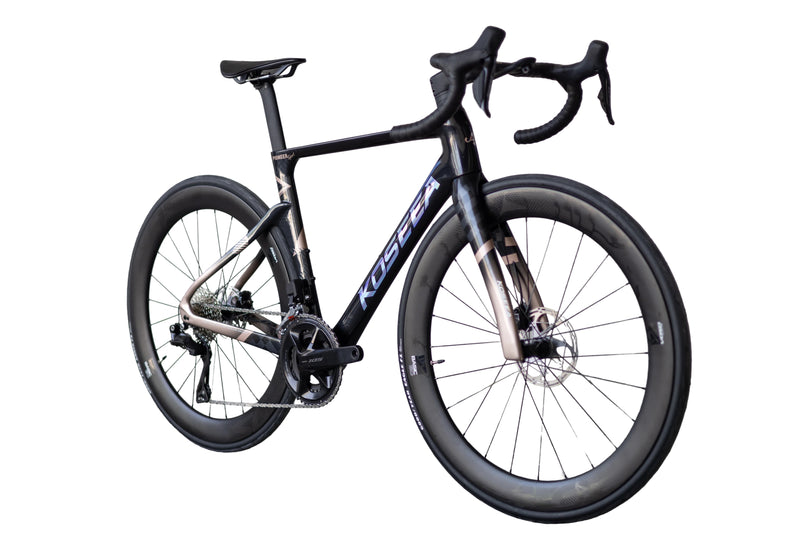

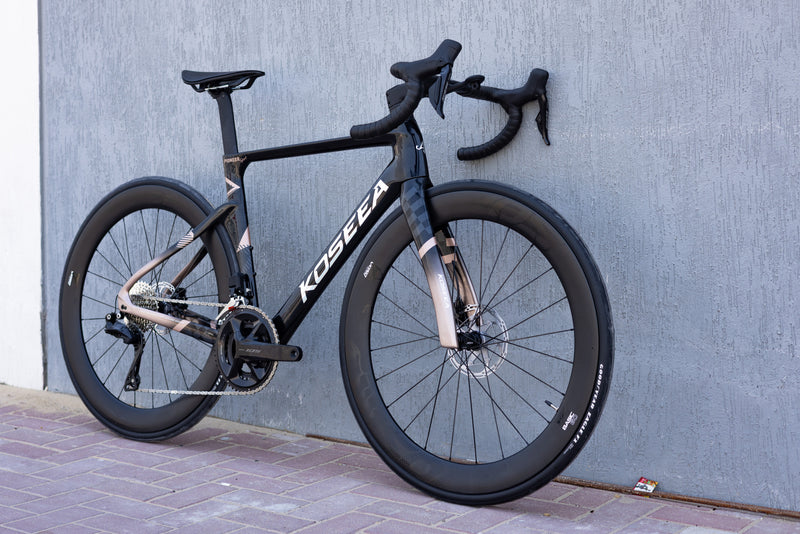

Specification
- Frame: Kossea Pioneer Sport Carbon 12×142mm thru-axle, Flat Mount Disc

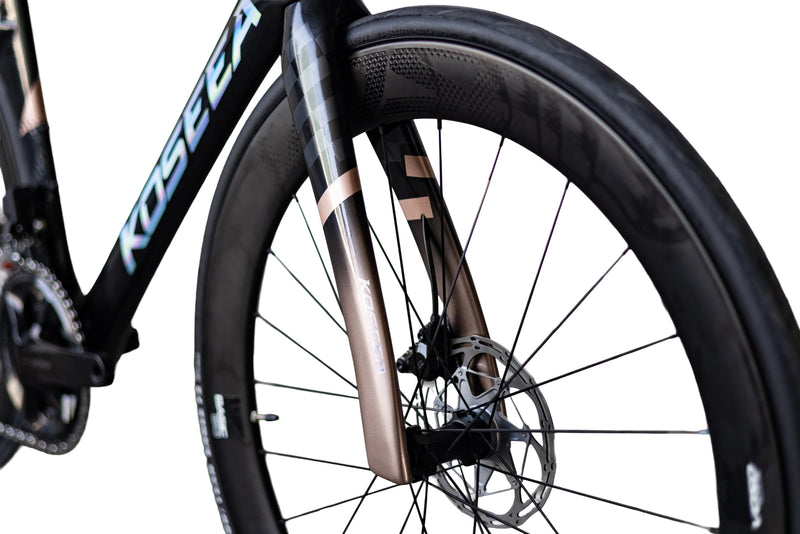

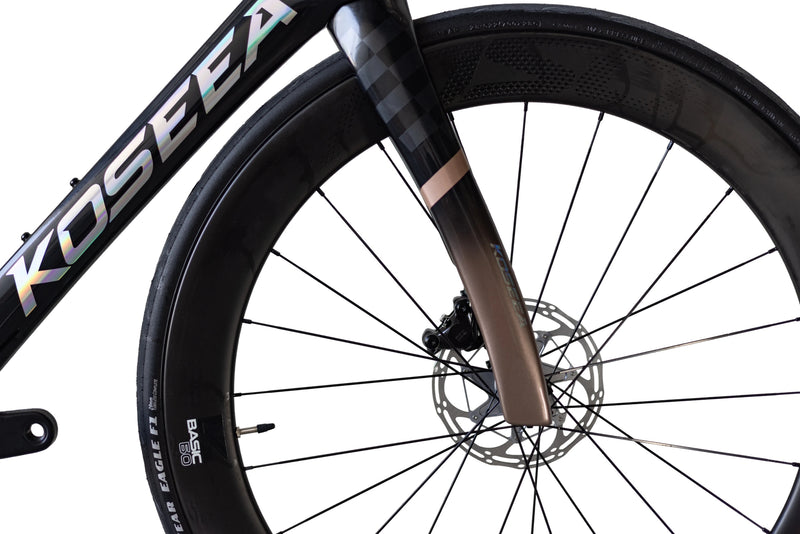

- Fork: Kossea Pioneer Sport Carbon 12×100mm thru-axle, Flat Mount Disc
- Shifter: Shimano 105 R7150 12-speed
- Front derailleur: Shimano 105 R7150 Di2,braze-on,2×12 speed

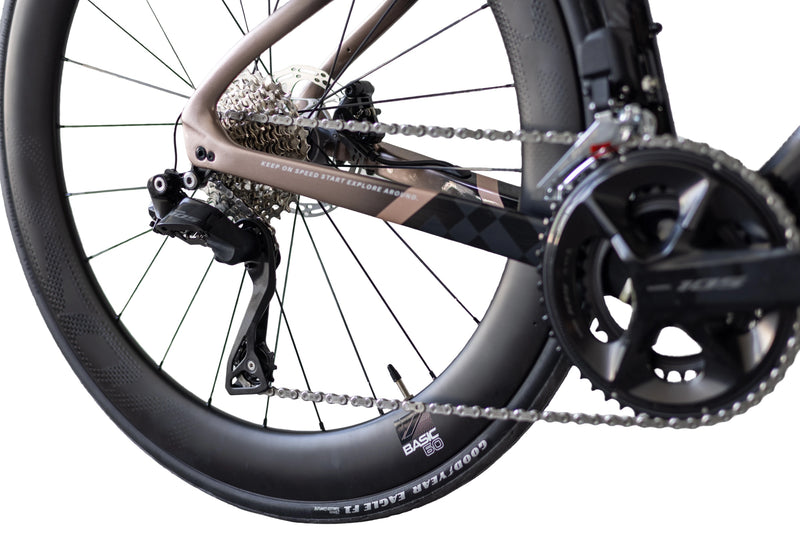

- Rear derailleur: Shimano105 R7150 Di2 12 speed
- Crank: Shimano 105 FC-R7100,50-34T
- Cassette: Shimano 105 CS-R7101,11-34T, 12-speed
- Chain: Shimano CN-M6100
- Bottom Bracket: BB86
- Brake: Shimano 105 R7170 Hydraulic Disc Brake
- Brake Rotor: Shimano RT10,Center Lock,160mm
- Wheelset: VOSO Lite Basic 50mm Carbon wheelset,tubeless ready.
- Tire: Goodyear Eagle F1 700X28C
- Saddle: Selle Italia Model X road saddle
- Handlebars: Kossea Carbon Integrated Handlebar,stem angle -10°,drop 127mm,reach 77mm
- Seat Post: Koseea aero carbon Seatpost, Di2-compatible
- Pedal: flat pedal including
- Weight: 8.4 kg in the M size
Size Chart:
- XS:156-168cm
- S:165-175cm
- M:172-180cm
- L:178-188cm
- XL:185-195cm
Geometry
Size Chat
- XXS:150-158cm
- XS:156-154cm
- S:160-168cm
- M:166-174cm
- ML:172-180cm
- L:178-186cm
- XL:183-195cm
Warranty.
From the date of purchase, the warranty period for each part is as follows:
Frameset: 2-year warranty under the non-human-caused damage or accident
Front and rear derailleurs: 6-month warranty under the non-human-caused damage or accident
Other Components: Wheels, saddle, shifters, cassette, crankset, hubs, handlebar, seatpost, brakes, suspension, bottom bracket - 6-month free warranty under the non-human-caused damage or accident
The wearable parts not listed above, such as inner tubes and tires, chains, cables, brake pads, brake hose and cables, shifter hose, and cables, etc. do not provide a free warranty.
During the warranty period, if the following circumstances cause damage, the Bross does not provide a warranty, and BROSS dealers can provide paid maintenance services.
Wrongly installed or misused by the provisions of this manual; (such as carrying persons, etc. exceeding the provisions)
Not properly maintained by this manual;
Exceeding the scope of the bicycle; (for example, using a road bike for mountain off-road)
Natural disasters and other irresistible situations;
There is a problem with the parts that a non-BROSS dealer has repaired:
After modification or change of the original factory configuration, and problems with the requirements of other companies:
Other parts damage and failure caused by the failure to replace the wearable parts in time.
