Magene Exar Road Bike Carbon Wheels

Specifications of EXAR Carbon Fiber Wheels Standard, Tubeless ready

Rim Brake

Disc Brake

Model

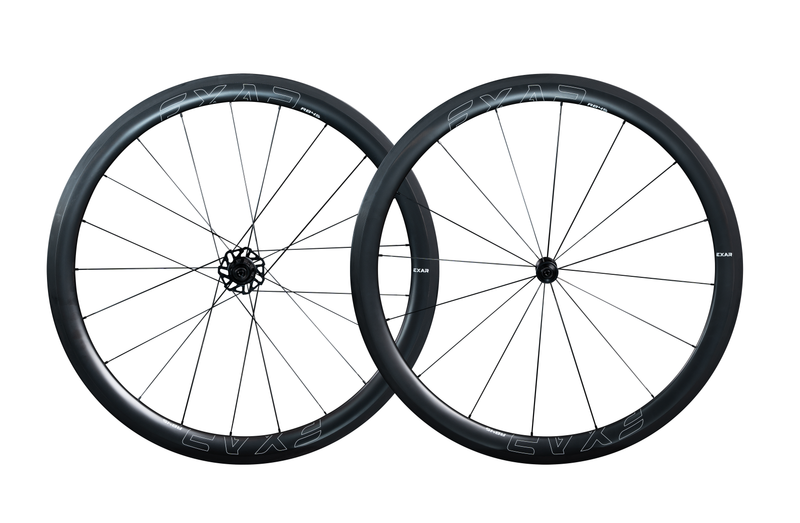

RB45

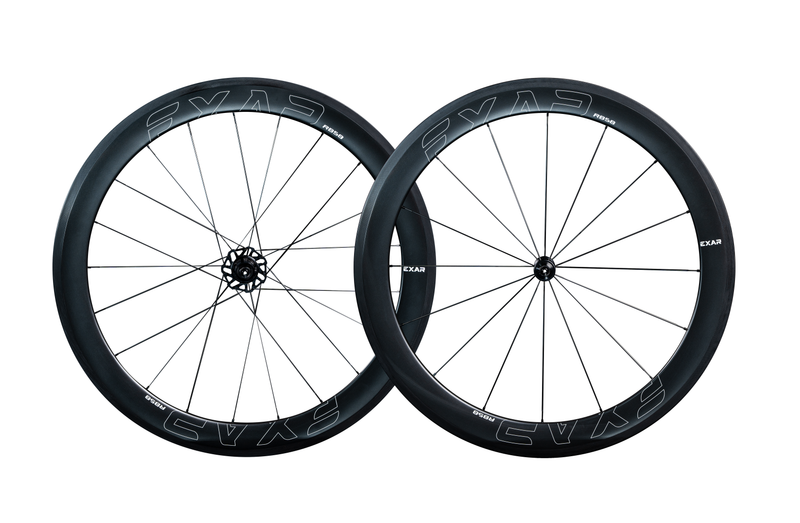

RB58

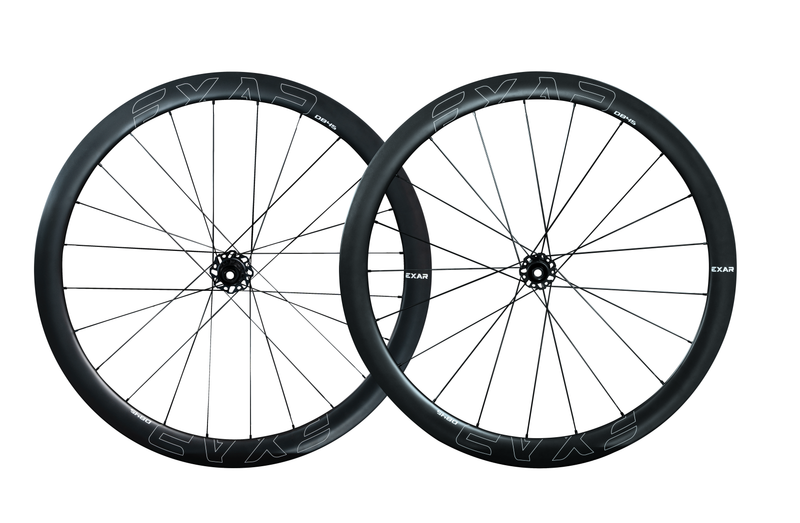

DB45

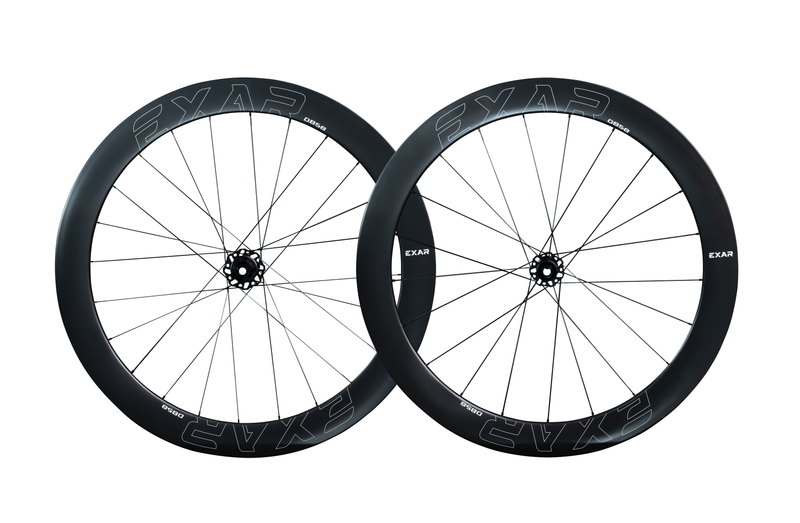

DB58

Frame Height

45mm

58mm

45mm

58mm

Weight

1460g

1570g

1520g

1620g

The weight of the wheelset does not include the weight of a quick-release skewer and a tire cushion.
The weight has an error of ±3%. The actual product may vary.

External Rim Width

27mm

27mm

Internal Rim Width

20mm

20mm

Rim Material

T700

T700

Brake

Rim brake

Center lock disc brake

Spoke Type

pillar wing21

pillar wing21

Front Wheel Spoke Tension

100kgf±10%

Rear Wheel Spoke Tension

Drive side

120kgf±10%
Non-drive side

110kgf±10%

Drive side

120kgf±10%
Non-drive side

100kgf±10%

120kgf±10%

Front Wheel Spoke Lacing Pattern

Straight-pull, 16H

21H, 2:1, Brake side×2, Non-brake side (Straight Pull)

Rear Wheel Spoke Lacing Pattern

21H, 2:1, Drive side×2, Non-drive side (Straight Pull)

24H, 2:1, Drive side×2, Brake side×2

Rim Type

Front wheel: Non-asymmetric
Rear wheel: Asymmetric

Non-asymmetric

Non-asymmetric

Frame Spacing

100/130mm quick release

100/142mm thru-axle
(100/135mm quick release, available separately)

Freehub

Standard SHIMANO 11-speed (CP cassette body, available separately for XDR cassette body).

Compatible Cassette

SHIMANO 8-12 speed, SRAM 8-12 speed (Available separately for XDR cassette body for 12-speed).
Campagnolo 8-12 speed (Available separately for CP cassette body in all models).

Compatible Frame

130mm quick release rim brake, 142mm thru-axle disc brake, 135mm quick release disc brake (Available separately for conversion kits).

Package Standard

Carbon fiber front wheel*1, carbon fiber rear wheel*1, tubeless tape*2 (factory-installed), instruction manual*1, special carbon fiber brake block*4, quick release*2.

Carbon fiber front wheel*1, carbon fiber rear wheel*1, tubeless tape*2 (factory-installed), instruction manual*1
