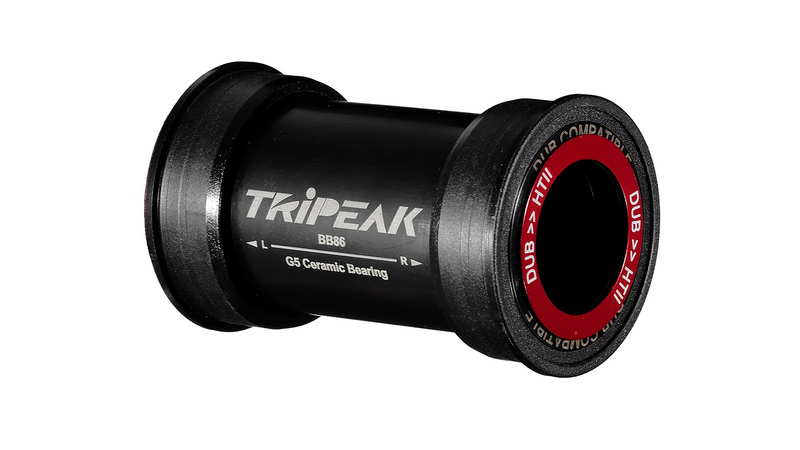

◆ TRiPEAK PRESS-FIT BB (Plastic Cup )
◆ 3-in-1 Core System (HTII / DUB / 3D+)
◆ G5 Ceramic Bearing / P05 Steel Bearing
The ceramic bearings utilize G5-grade ceramic balls and are paired with precisely machined steel race, delivering excellent rotational performance for riders.
The 3 in 1 Core System BB set can accommodate for three different crank spindle specifications. Easily switch between different cranks without the need to change the Bottom Bracket.
| BB86 86mm (Road) : 3-in-1 | |
| Type | Road Bike |

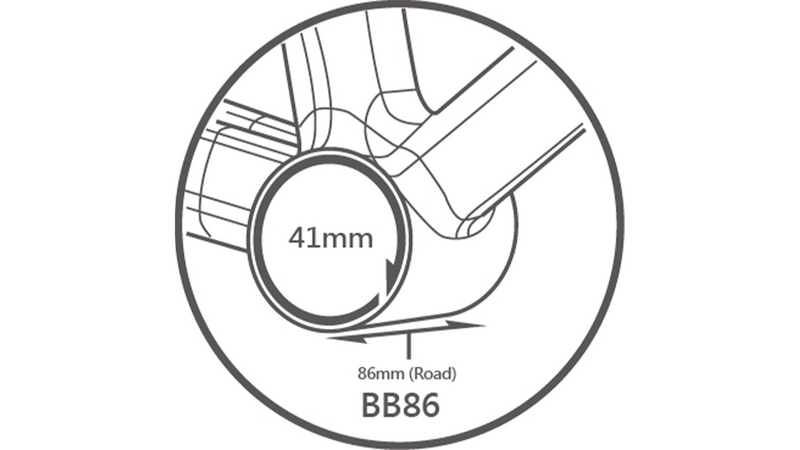

| Frame Spec | BB86 DIA.41mm x Width 86mm |
| Crank Spec | SHIMANO HTII (dia.24mm) SRAM DUB (dia.28.99mm) ROTOR 3D+ (dia.30mm) |
| Bearing | G5 Ceramic Bearing |
| Material | Cup : PA+GF composite material Sleeve : PA+GF composite material |
| Accessories | 30mm Cap*2 28.99mm Cap*2 28.99mm Spacer*1 (Drive Side) 24mm Cap*2 |
| Color | Black |
| Weight | G5 : 47g/set (w/o cap) P05 : 50g/set (w/o cap) |
TRiPEAK PRESS-FIT BB Installation-For BB86/92-ROAD 3in1 Core System
Manual PDF Download
